UYGALAXY 100W Greenhouse Film Roll Up Motor with Limit Switch, Waterproof

The electric roll-up motor for greenhouse is used extensively in Greenhouse.

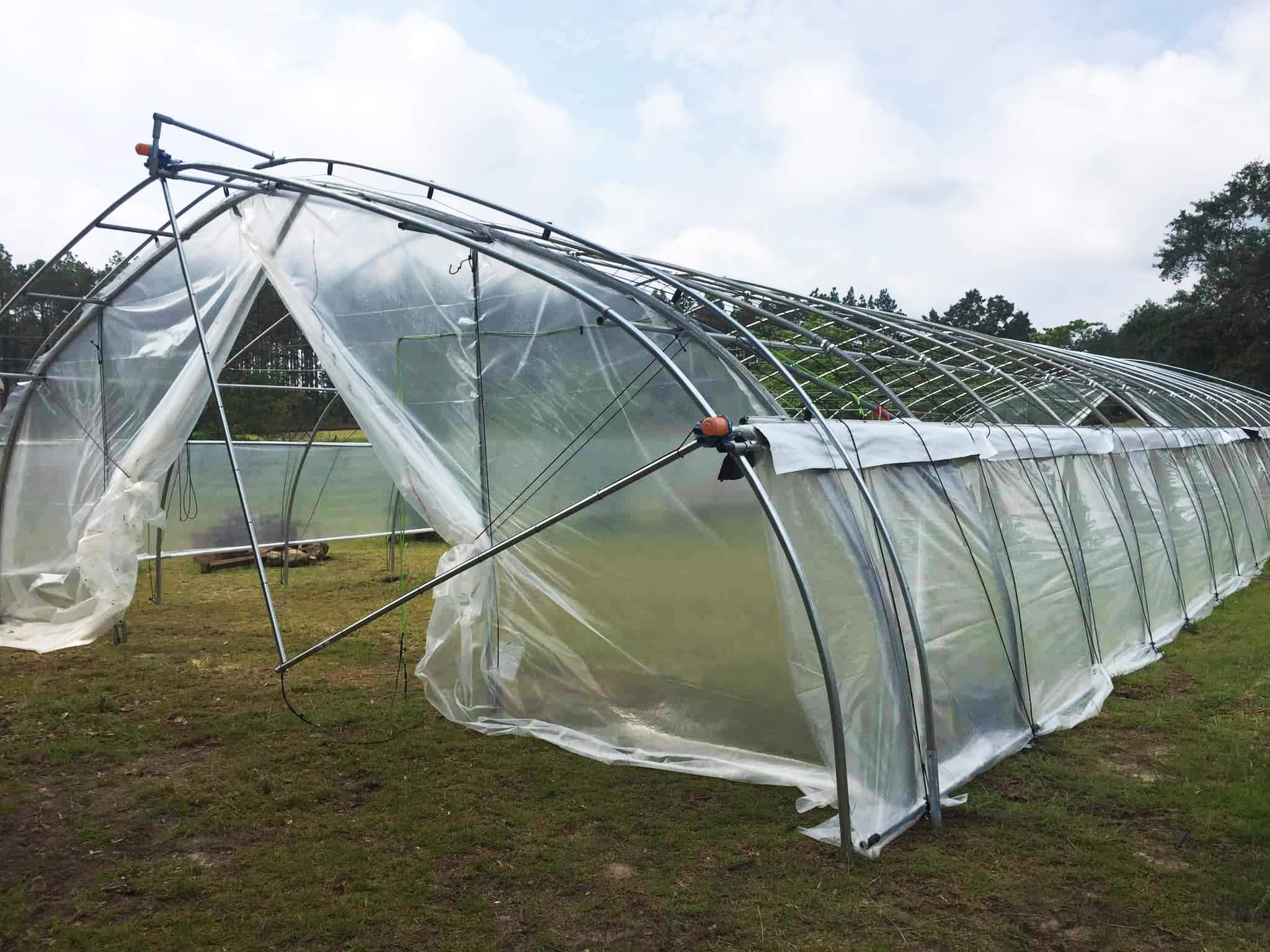

Such as the solar greenhouse, vegetable greenhouse, culture greenhouse, multi-span filmgreenhouse and other assembled greenhouse, by which to open or close the side windows and top windows through the rolling of film(it needs a power reverse switch to control).

Product Advantage

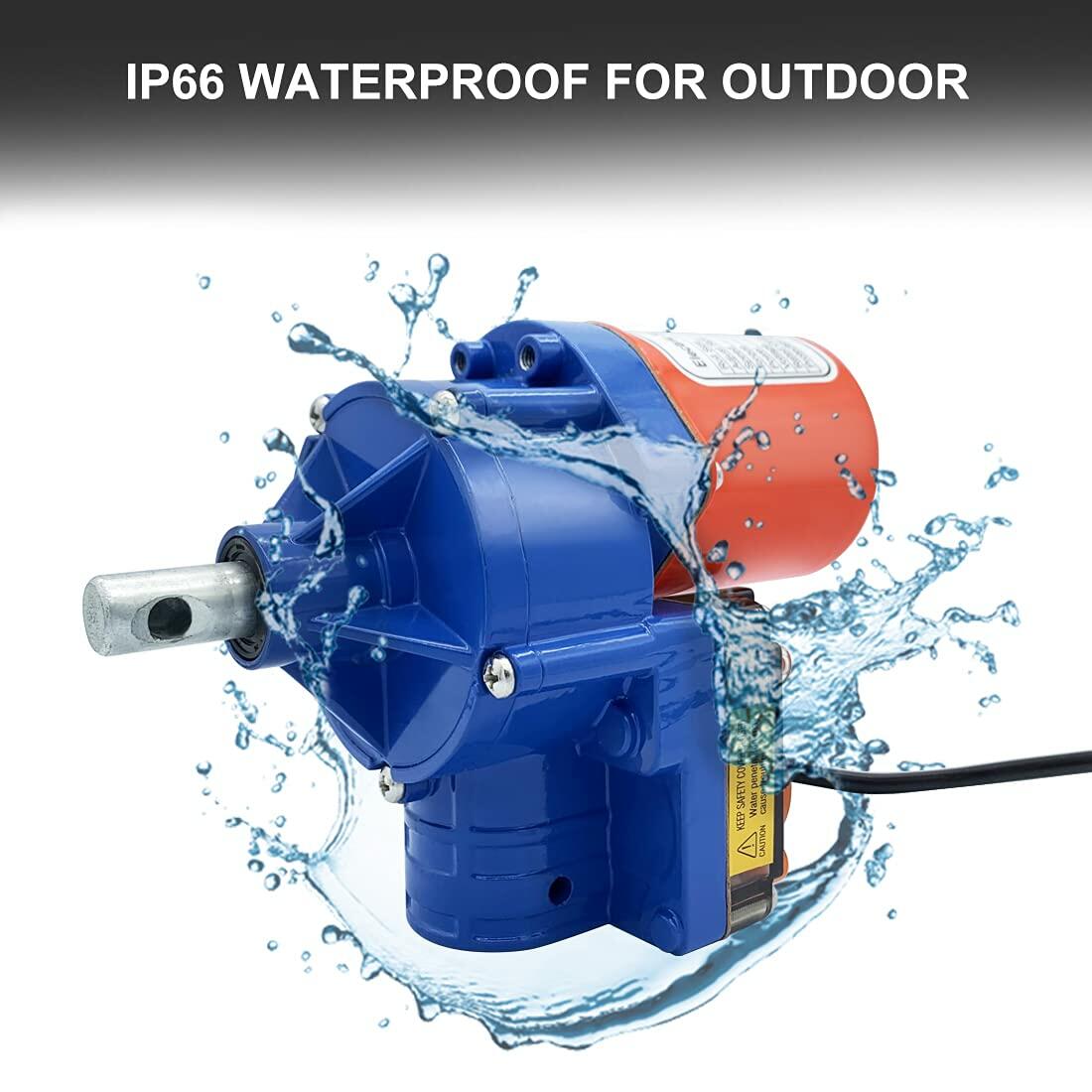

1. IP 66 waterproof protection class.
2. Compact size and low noise, easy installation.
3. can be install on the top of greenhouse, and side of the greenhouse(needs creeper).
4. Roll up film tube length up to 360ft ; And 10ft height when OD20mm(Outside Diameter) tube,12.9ft height when OD25mm tube.
5. Setting the limit switches on hoop house roll up ventilation motors.

Specifications
Power: 100 watt
Travel Limit: 40 loops
Voltage: DC 24v
Speed: 2.8rpm
Rated Current: 3.6A
Torque: 100N.m
Protection Class: IP66
Maximum roll bar length: 360ft (110m)

How to install:

1. Tighten the roll tube with the product by bolts
2. Fix the film on the film tube through the solid film clamp, keeping the film tube in line with the output shaft of the product.
3. After fixing and starting the winder power supply, the film can be opened and closed.

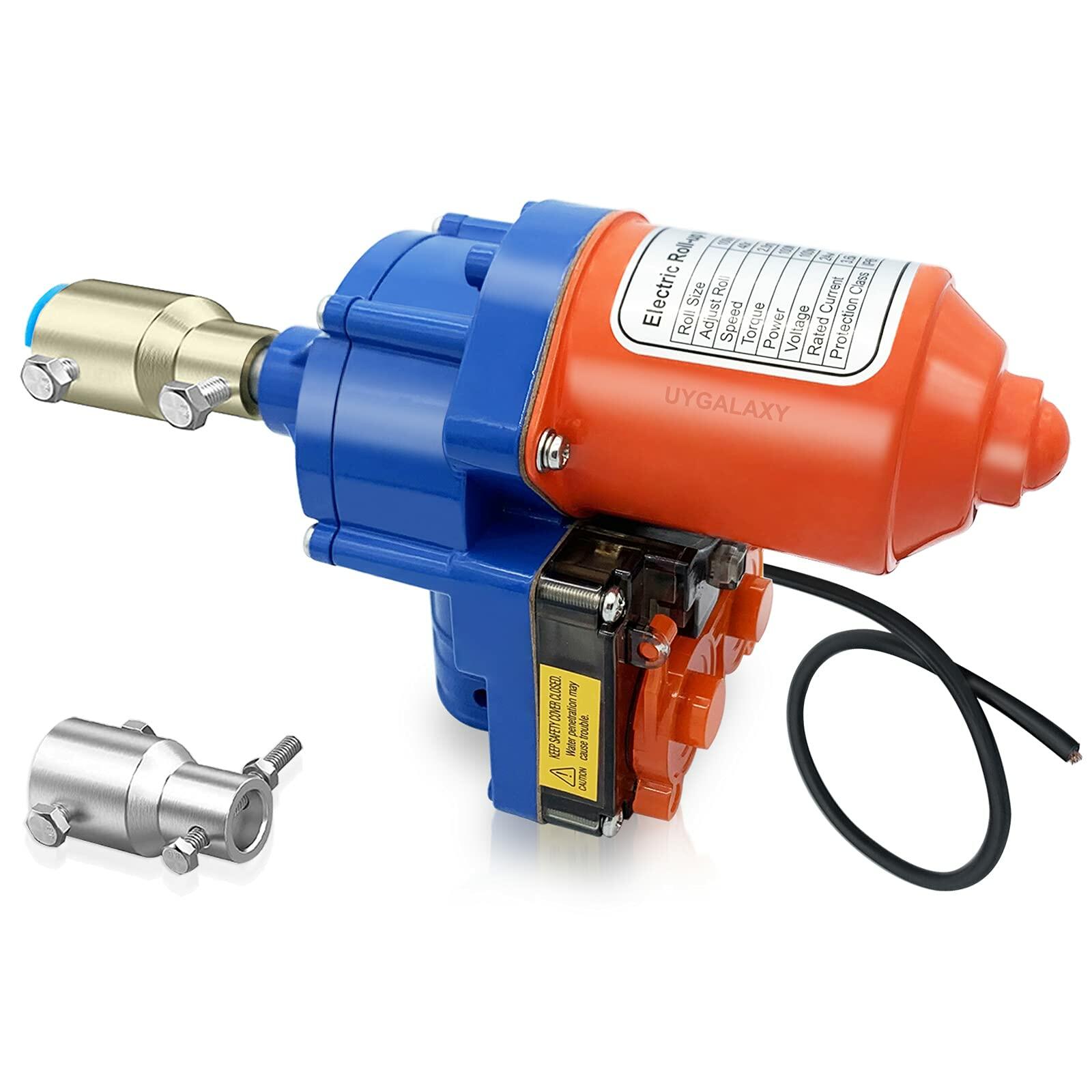

The coiled tube used in this product has 2 specifications, OD20mm, OD25mm:
1. When using OD20mm pipe , it should be used with 'opening sleeve'.
2. The OD25mm pipe can be directly inserted into the 'connection sleeve'.

Material selection:

1. It's recommended 16AWG cord if within 164ft(50m) from the motors to controller or power.
2. If connect 20 sets of motors to 1 transformer, it is recommended to use 3 AWG aluminum cord or 7 AWG copper cord as the main line to connect to transformer( the motors in parallel.)
3. If 20 electric roll up motors are connected at the same time, it is recommended to use 1600W ~ 2000W transformer.

FEATURES

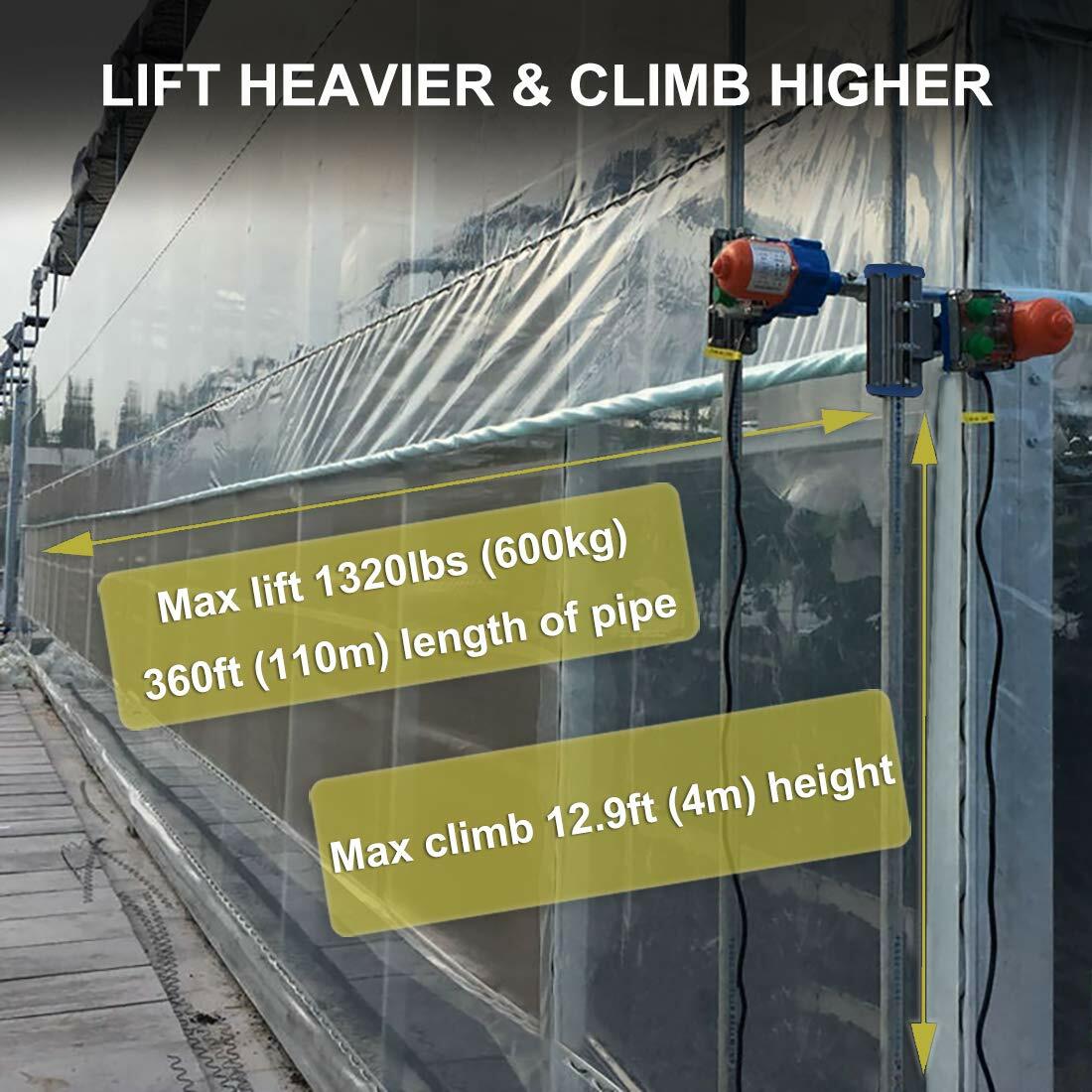

• [ Strong power ] lift up heavier for 1320lbs, climbing higher for max 12.9ft of hoop house top.
• [ Easy to carry ] 2~360ft roll tube of greenhouse for ventilation, both works on OD20mm or OD25mm roll tube.

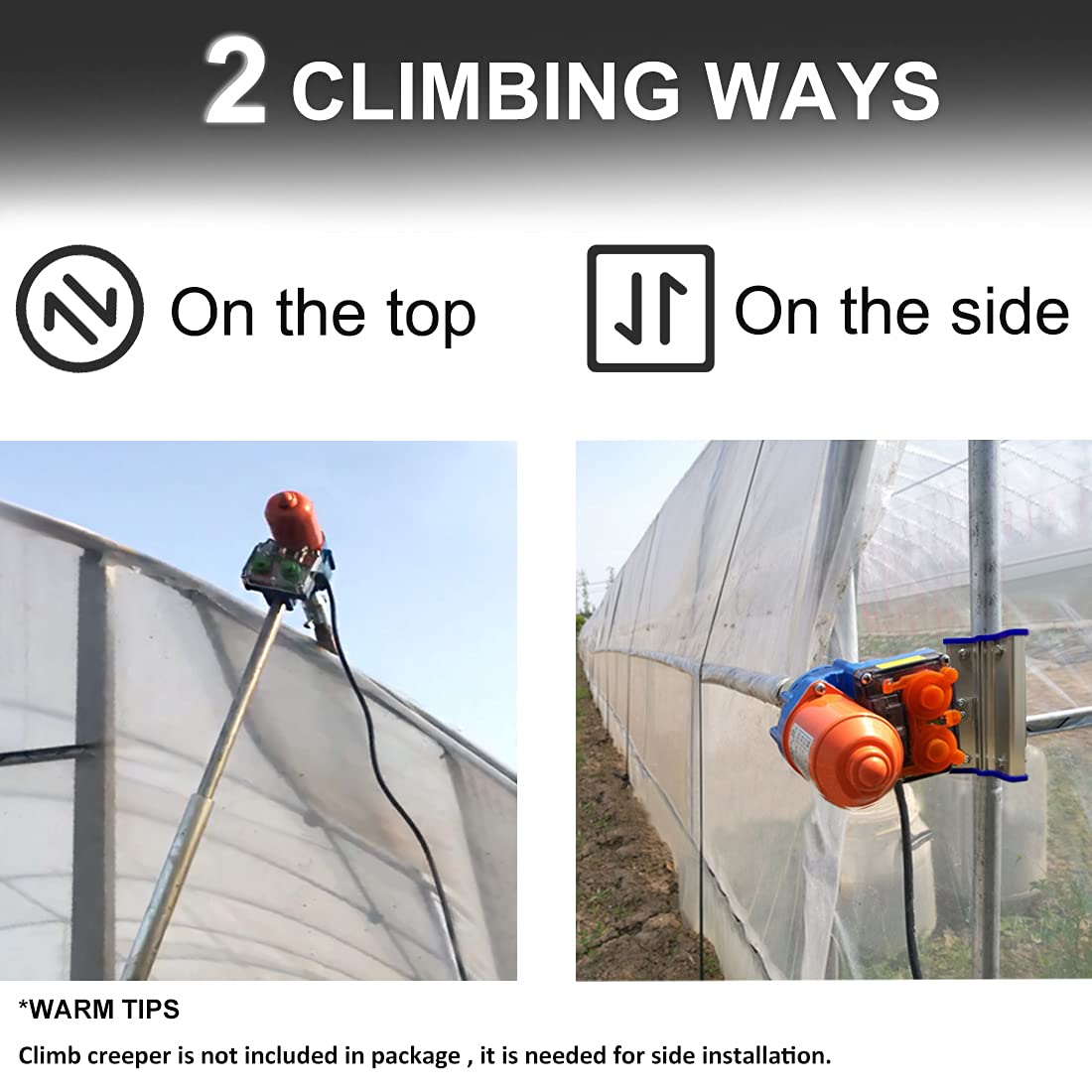

• [ 2 Install ways ] Set the roll-up motor on the top of hoop house for open and close the roof, or set on the side of greenhouse.
• [ Automate the work ] Simplified roll film work by pressing one knob after wiring to power reverse switch.
• 【 Lifetime Support 】Technical team is ready for any question.
