Pengo 4K HDMI Capture Card USB 3.0 1080p60 Pass Through PS5 Xbox Switch

Pengo 4K HDMI GrabberSupports 4K @ 60 fps 4:4:4 video output and captures audio/video HDMI source.

Description

Pengo 4K HDMI Grabber is designed to support 4K UHD video output and captures audio/video HDMI source; transferring audio/video between the grabber and your PC/NB through USB, easily enables streamers to capture each sound and movement. With Pengo 4K HDMI Grabber, it will not affect the performance of your computer and benefit from a stable video capture in FHD at 60 fps.

Application

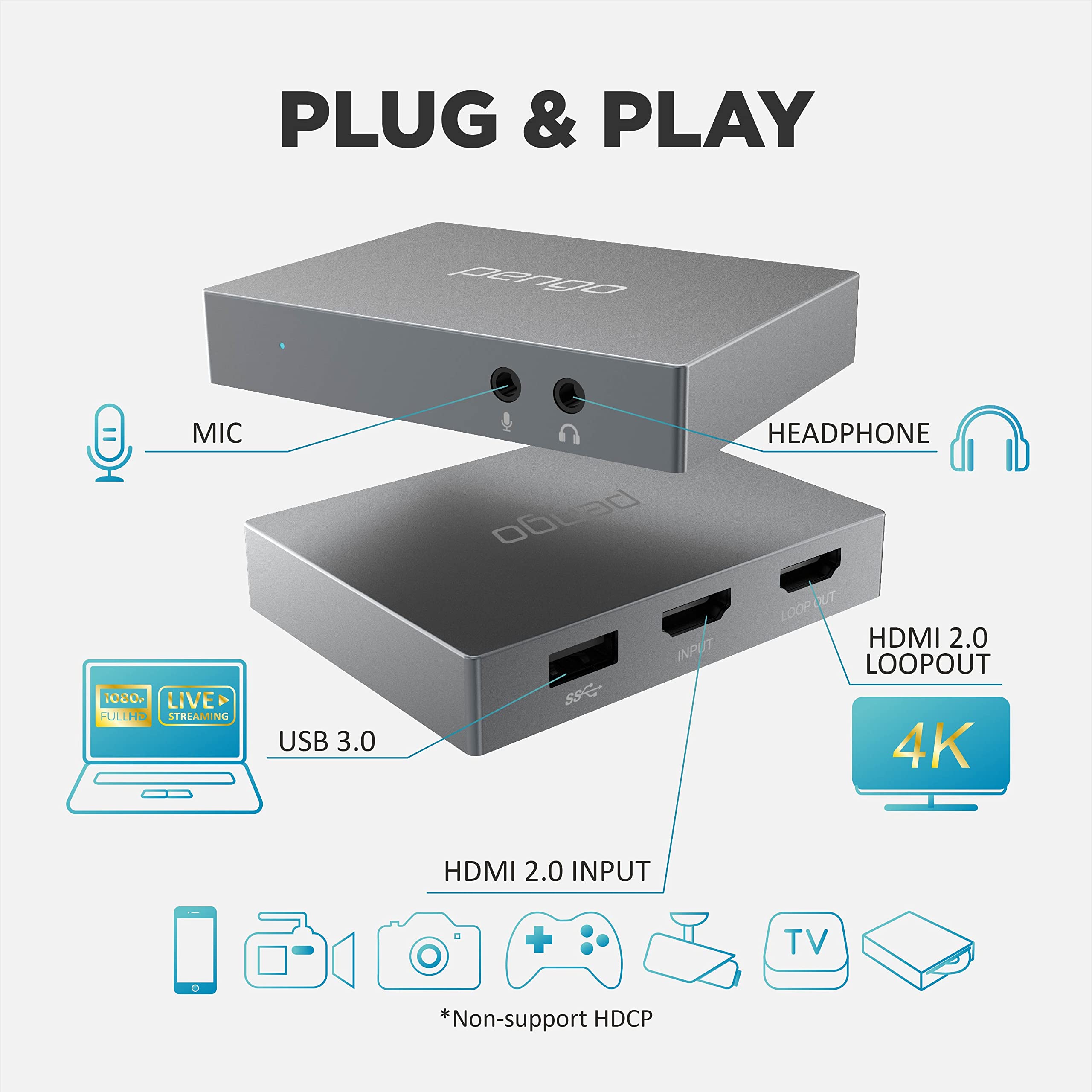

Simply plug-in your device as the source into HDMI input. Connect your mic and headset into their perspective connectors, and a 4K monitor into the HDMI loop out. Use the USB 3.0 port to connect your PC/NB and run your video player software from your computer for live streaming or recordings Enjoy a high-resolution video quality and crystal clear sound on your PC/NB with our 4K HDMI Grabber.

Features

Support UVC video.

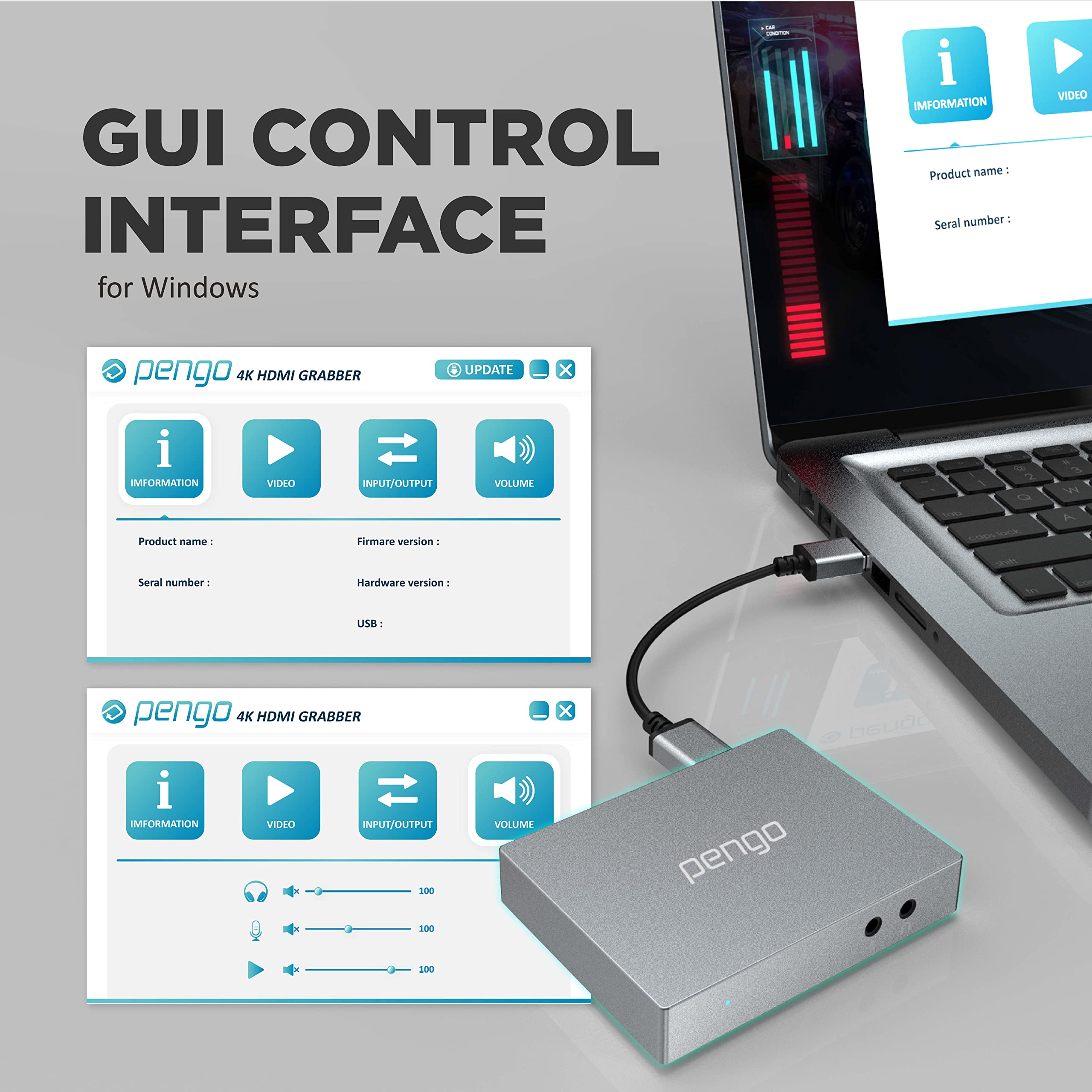

GUI control interface.

Supports 4K @ 60 fps 4:4:4 video output and captures audio/video HDMI source.

Plug-n-play, no driver nor external power needed.

Support HDMI 2.0 and UHD resolutions up to 4096 x 2160 at 60fps.

Video capture in FHD at 60fps.

Support USB 3.0 or USB 2.0 data uplink.

Support true 24-bit color and provides consistent frame rate performance regardless of video content.

Support stereo microphone input and stereo headphone output.

Minimal to zero lag video capture for a live streamer.

FEATURES

• 🎮Supports 4K @ 60 fps 4:4:4 video pass-through HDMI output and captures 1080p60fps audio/video via USB 3.0 UVC, like XBox, PS4 (turn off HDCP), Switch, etc and connects to your USB 3.0 laptops and desktops. No driver needed but will require a third party capturing. DESIGNED IN TAIWAN. We do not support platforms that enables HDCP or plays copyright content such as SetTopBox, Netflix, Chromecast, Apple TV, BlueRay, DVD, etc etc. Will work if HDCP is turned off!
• 🎮OS SUPPORT: Windows 8 and above, Mac OS (10.13 and above) without driver via USB UVC. Driver needed for Windows 7 available on our website. Game capture made easy. Allowing you to capture your video while playing games at any OS. Supported softwares: OBS (more complicated set up process), XSplit, vMix, VLC, QuickTime, etc. Please make sure to read and set up carefully with third party softwares. Some might be more complicated than others. Easy set up guide available on our website.

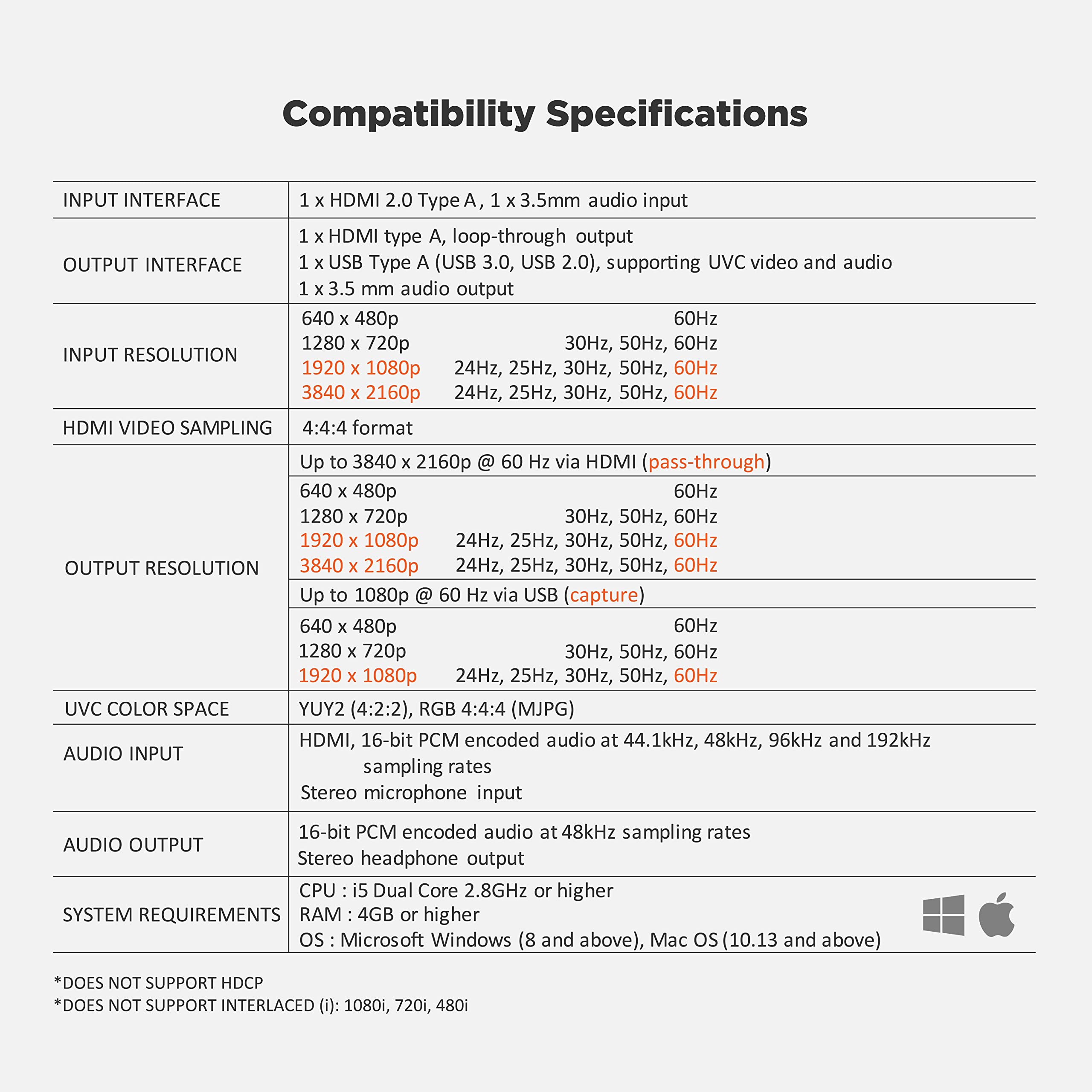

• 🎮OUTPUT RESOLUTION: Up to 3840x2160p @ 60 Hz via HDMI. Up to 1080p @ 60 Hz via USB. Audio Input: HDMI, 16-bit PCM encoded audio at 32kHz, 44.1kHz, 48kHz, 96kHz, and 192kHz sampling rates INPUT RESOLUTION: 640 x 480p, 60Hz / 1280 x 720p, 30Hz, 50Hz, 60Hz / 1920 x 1080p, 24Hz, 25Hz, 30Hz, 50Hz, 60Hz / 3840 x 2160p, 24Hz, 25Hz, 30Hz, 50Hz, 60Hz. Video Sampling: 4:4:4 format. Output Color Space: YUY2 (4:2:2), RGB (4:4:4) MJPG. We do not support 1080i or 720i.
• 🎮SYSTEM REQUIREMENTS: CPU: i5 Dual Core 2.8GHz or higher. RAM: 4GB or higher. OS: Windows (8 and above), Mac OS (10.13 and above). Includes a USB-A to USB-A Cable to conntect to your computer. HDMI Cable not included. USB 3.0 YUY2 is recommended over USB 2.0 as USB 2.0 has bandwidth restrictions and MJPEG is a compressed data.
