JQDML 12V High Speed Linear Actuator - 28 Inch Stroke, 66lbs/300N, 1.77"/s

JQDML 12V Linear Actuator 66lbs/300N High Speed 1.77"/sec Electric Actuators with Mounting Bracket for Home Automation, Window Opener,Door Opener

FEATURES

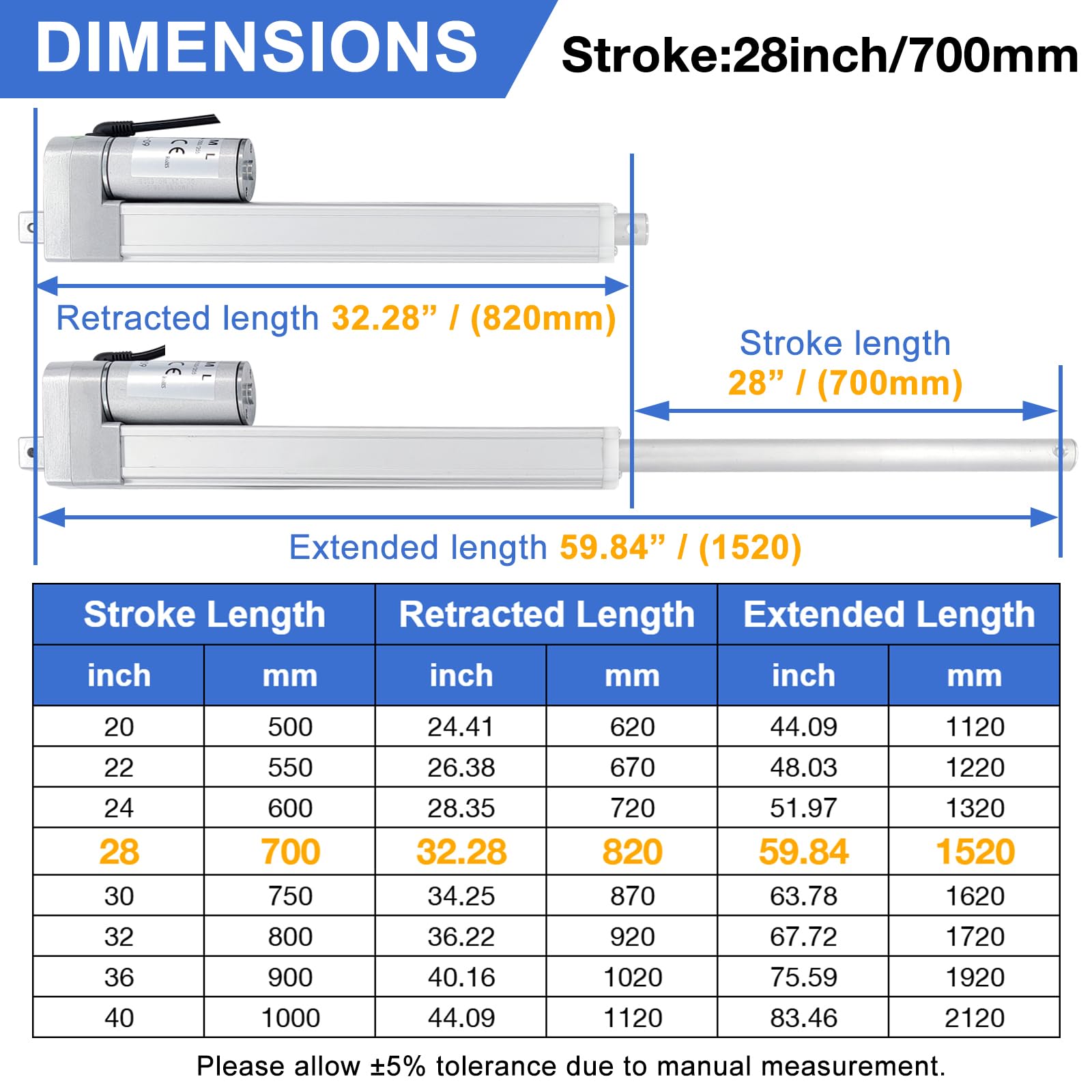

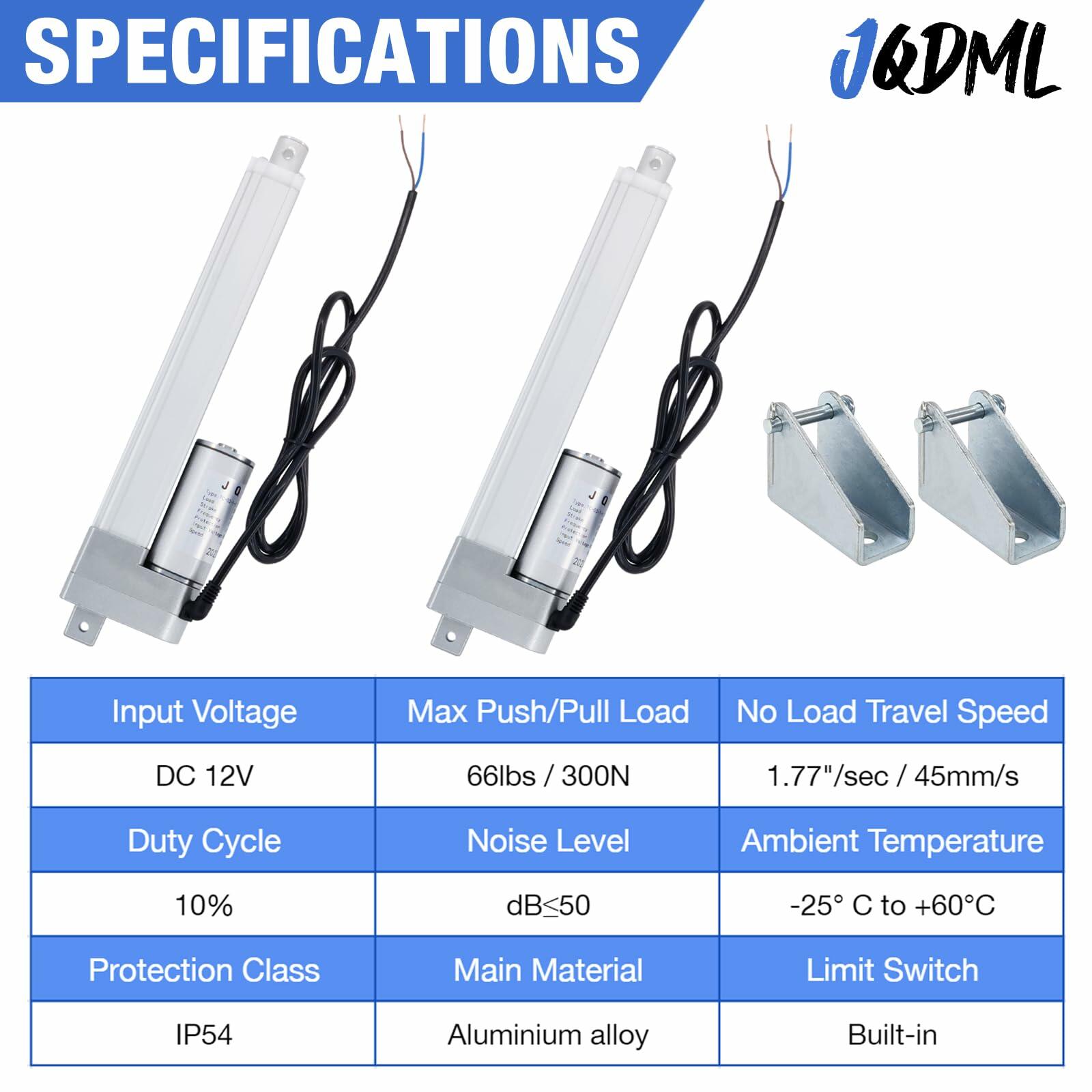

• Specification：Voltage: 12V DC; Stroke Length: 28"(700mm), Retracted length: 32.28"(820mm), Extended Length: 59.84"(1520mm); No load speed: 1.77"/s (45mm/s), Maximum Load: 66lbs(300N); Load Current: 4.5A; Duty Cycle: 10%, Working power should reach 40W

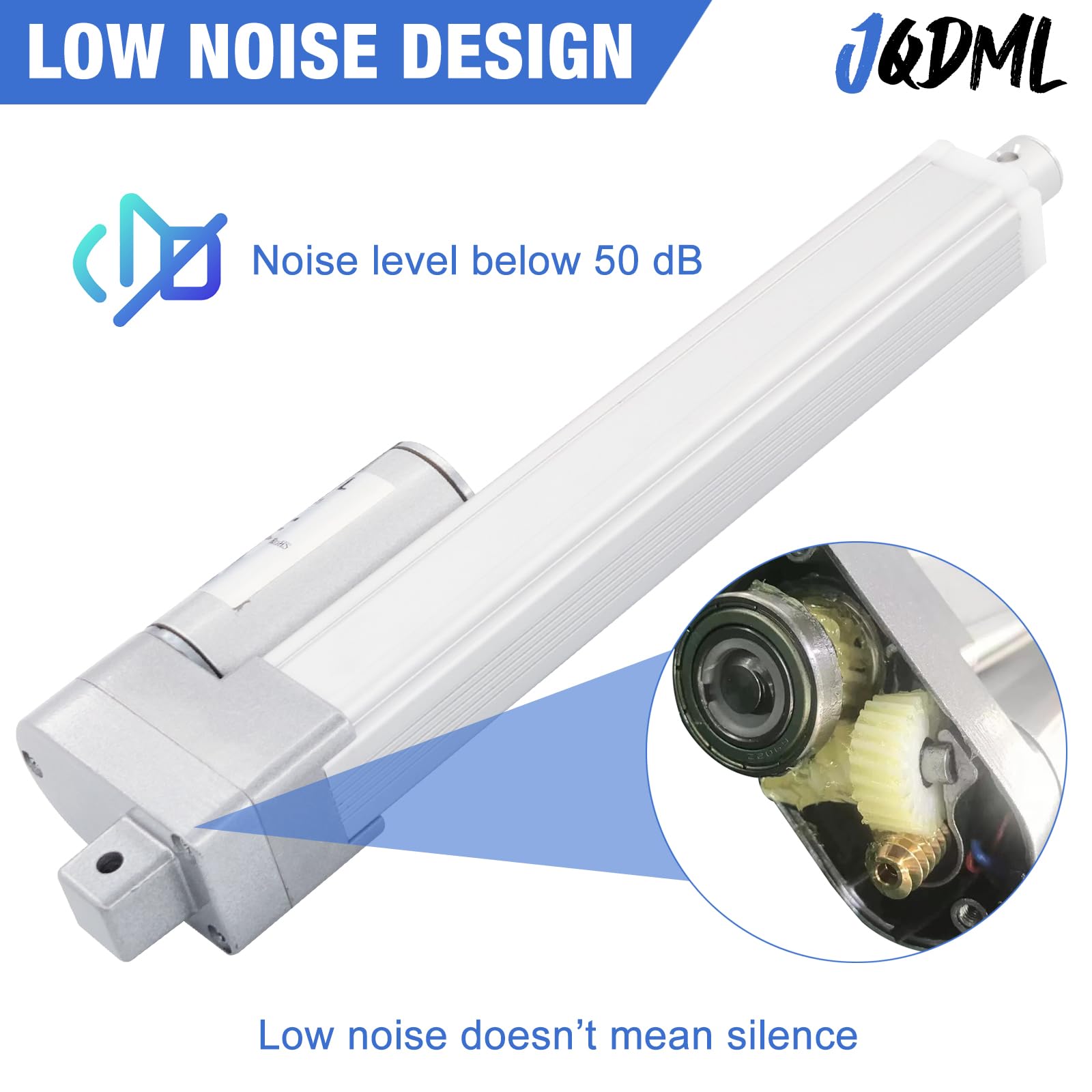

• Quiet & Smoothm Operation：Low-noise design (≤50dB),with a premium plastic turbine that resists oxidation, extends service life, and ensures quiet movement.It delivering a quiet and comfortable user experience,making the linear motion actuators perfectly suitable for indoor use and home automation
• High-Speed Performance：No-load speed up to 1.77 in/s, greatly improving work efficiency. Its fast movement cuts waiting time,easily catering to the needs of various DIY projects

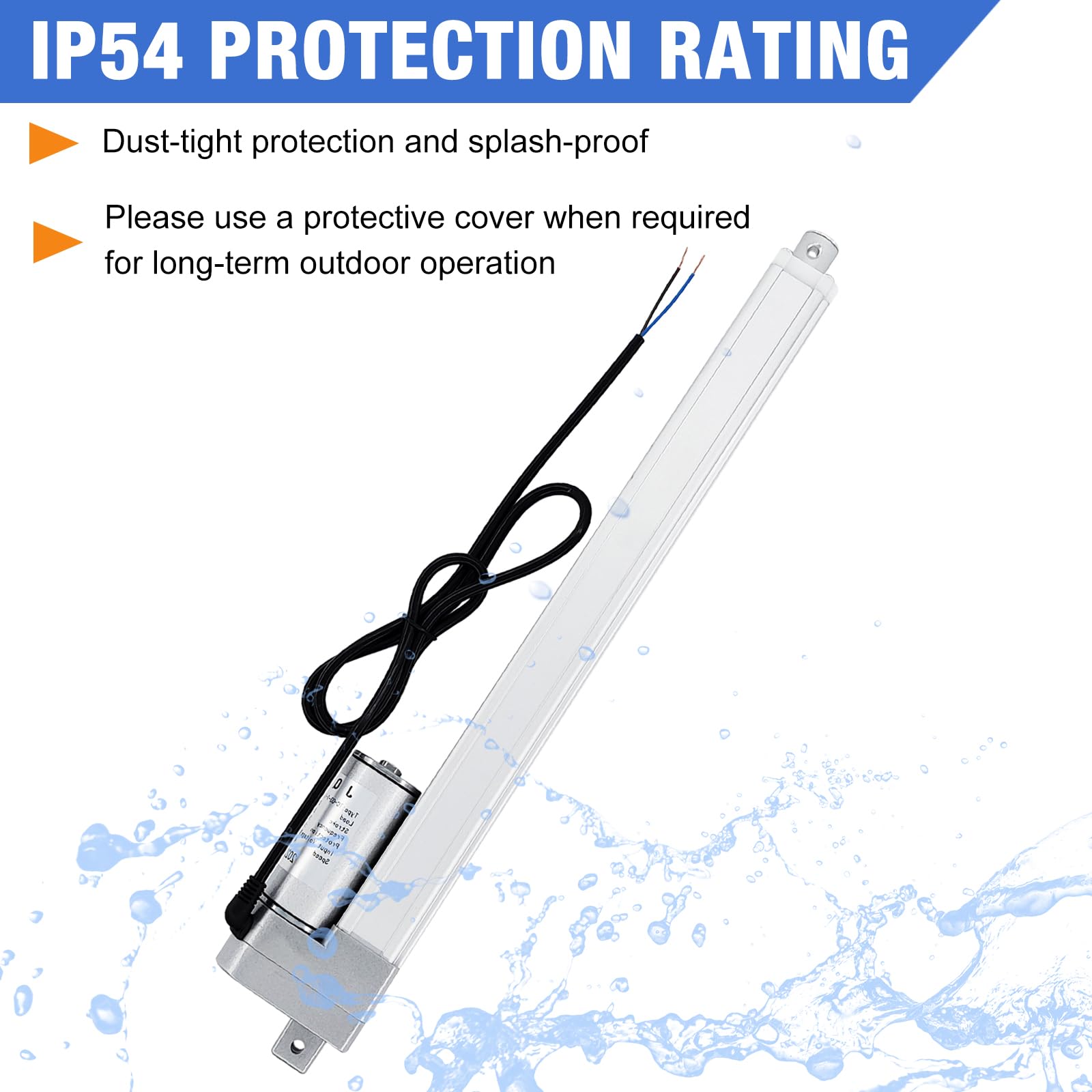

• Durable & Reliable ：Made of premium aluminum alloy for a sturdy, wear-resistant build. Equipped with a limit switch, it can automatically stop the motor when it reaches either end. Its robust self-locking function allows it to stay in any position, preventing motor burnout and load slipping. Boasting an IP54 rating, it can resist daily dust accumulation, ambient moisture, and occasional water splashes with ease. Operating Temperature Range: -13°F to 140°F (-25°C to 60°C)

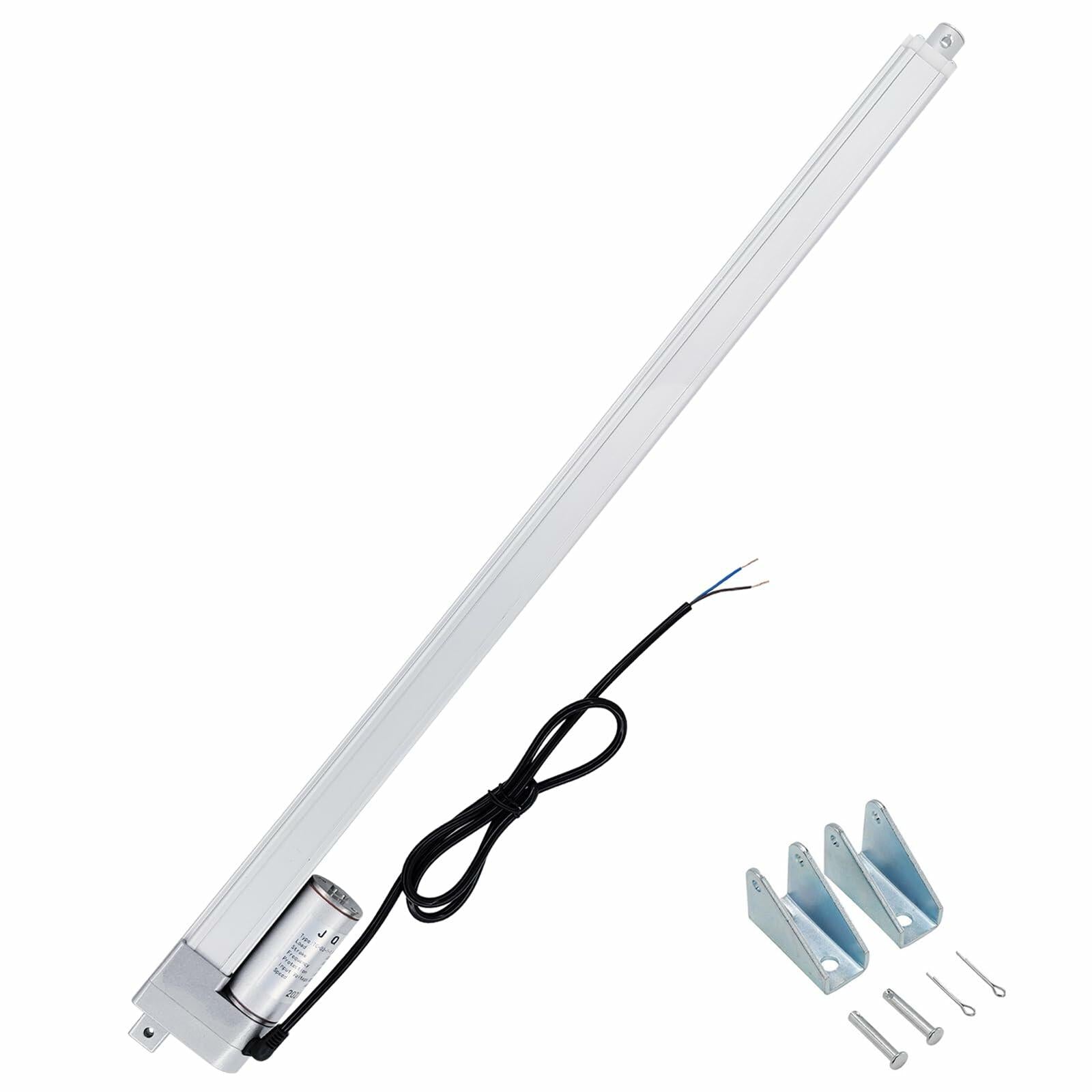

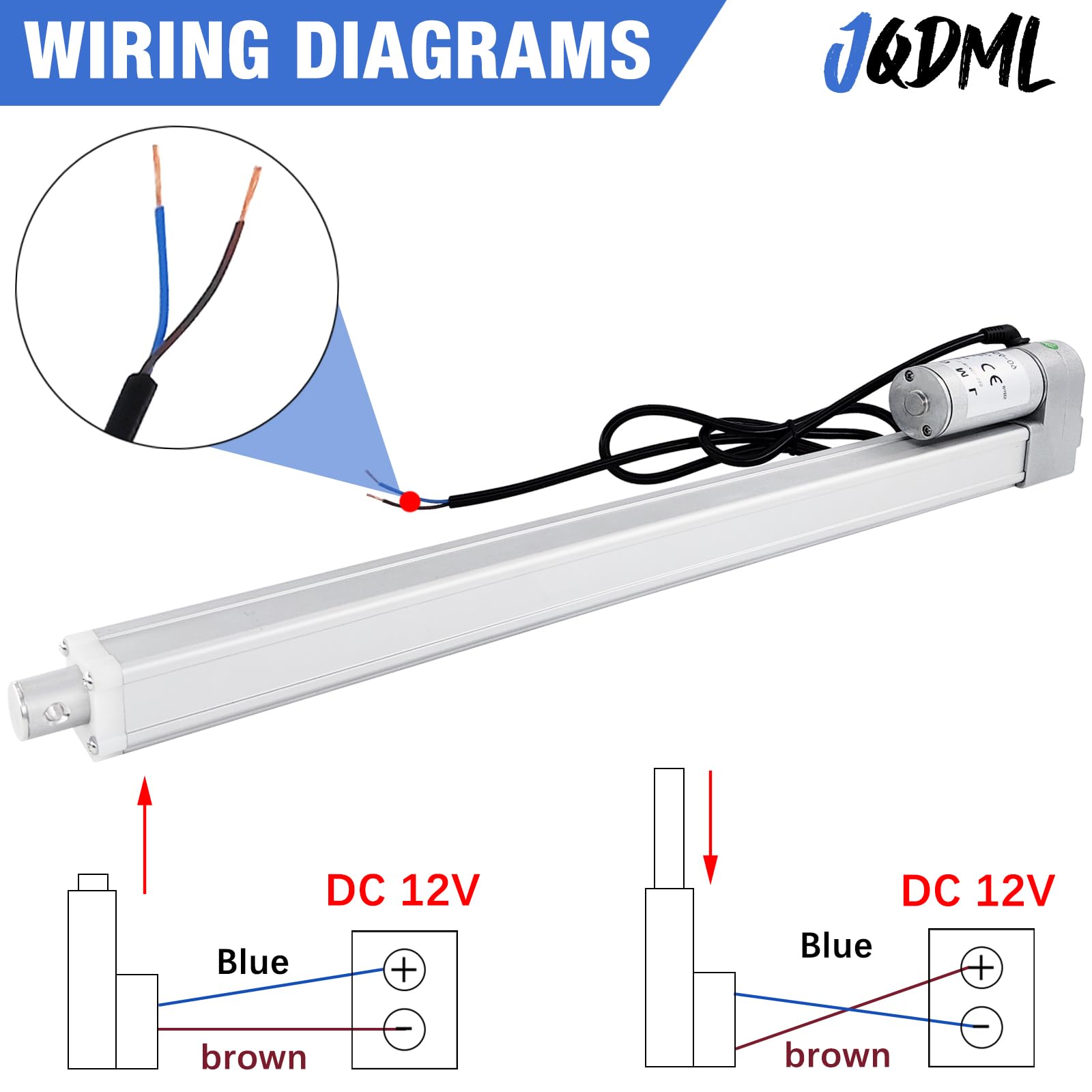

• Easy to Use：The linear actuator comes with mounting brackets for quick and easy assembly.Easy wiring operation:connect the blue wire to the positive terminal and the brown wire to negative terminal to extend the actuator. To retract it, simply reverse the terminal connections
