INJORA Fat Viper 2204 Brushless Outrunner Motor & Transmission for TRX4M
$45.95
Skip to product information
INJORA Fat Viper 2204 Brushless Outrunner Motor & Transmission for TRX4M
$45.95
Shipping calculated at checkout.
Item Number:
Condition:
Low Stock — Only 1 Left
Description
Note:
Please be sure to adjust the MBL32 ESC settings according to the parameters of the 2204 motor as detailed in our Programming Tutorial.
2400KV Motor Specifications:
Model Number: 2204
Motor Type: Sensorless Brushless Outrunner
RPM/Volt: 2400KV
Motor Poles: 14
Sine Mode Power: 7
Max Power: 2500W
No-Load Current: 0.7A
Max Peak Current: 50A
Motor Connectors: PH2.0 3Pin

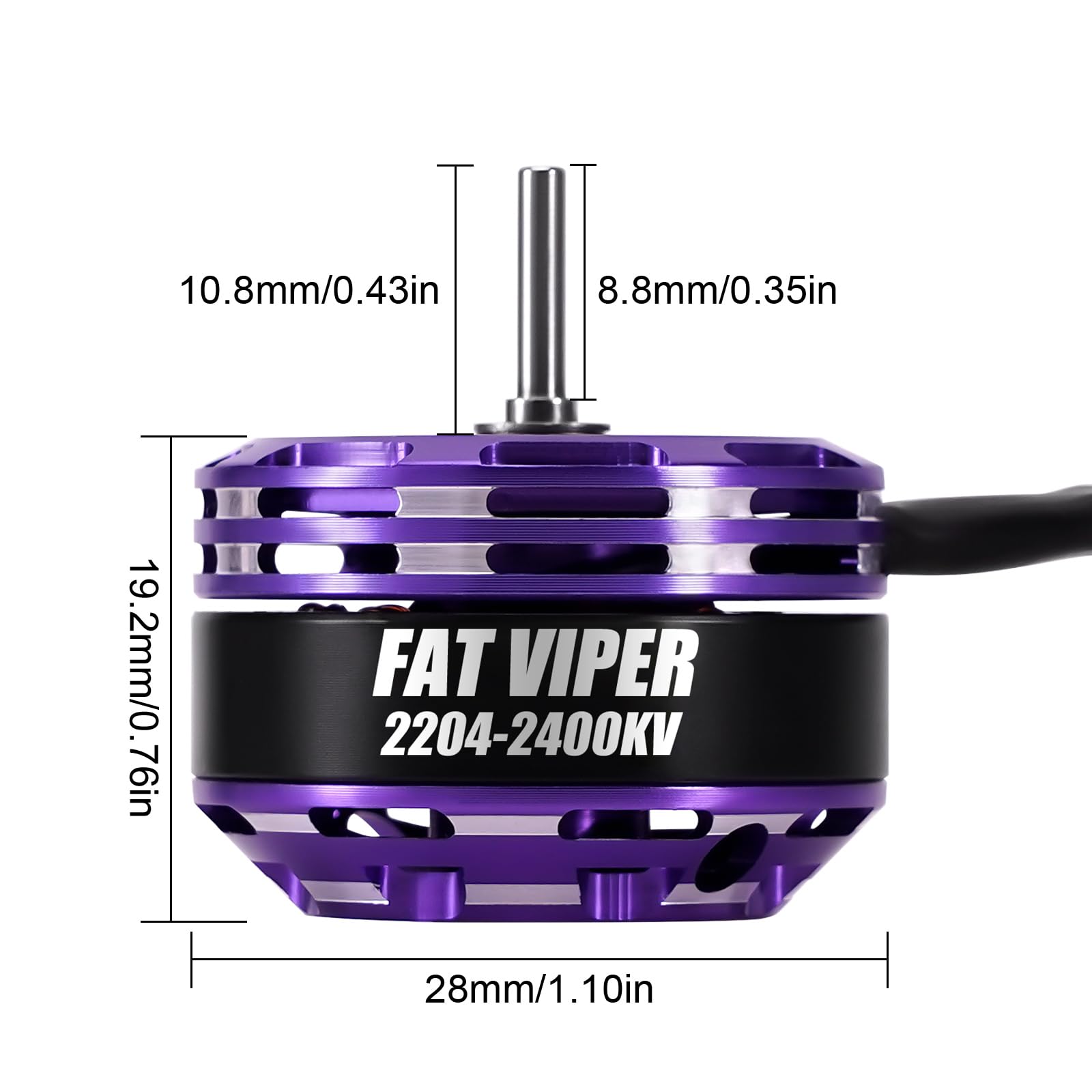

Dimensions: 28*19.2mm
Motor Output Shaft: 2mm
Motor Pinion: 0.4mod 10T
Weight: 28g
Transmission Specifications:
Housing Material: Aluminum
Gears Material: Stainless Steel
Internal Gears: 24.4:1 gear set, underdrive 32%

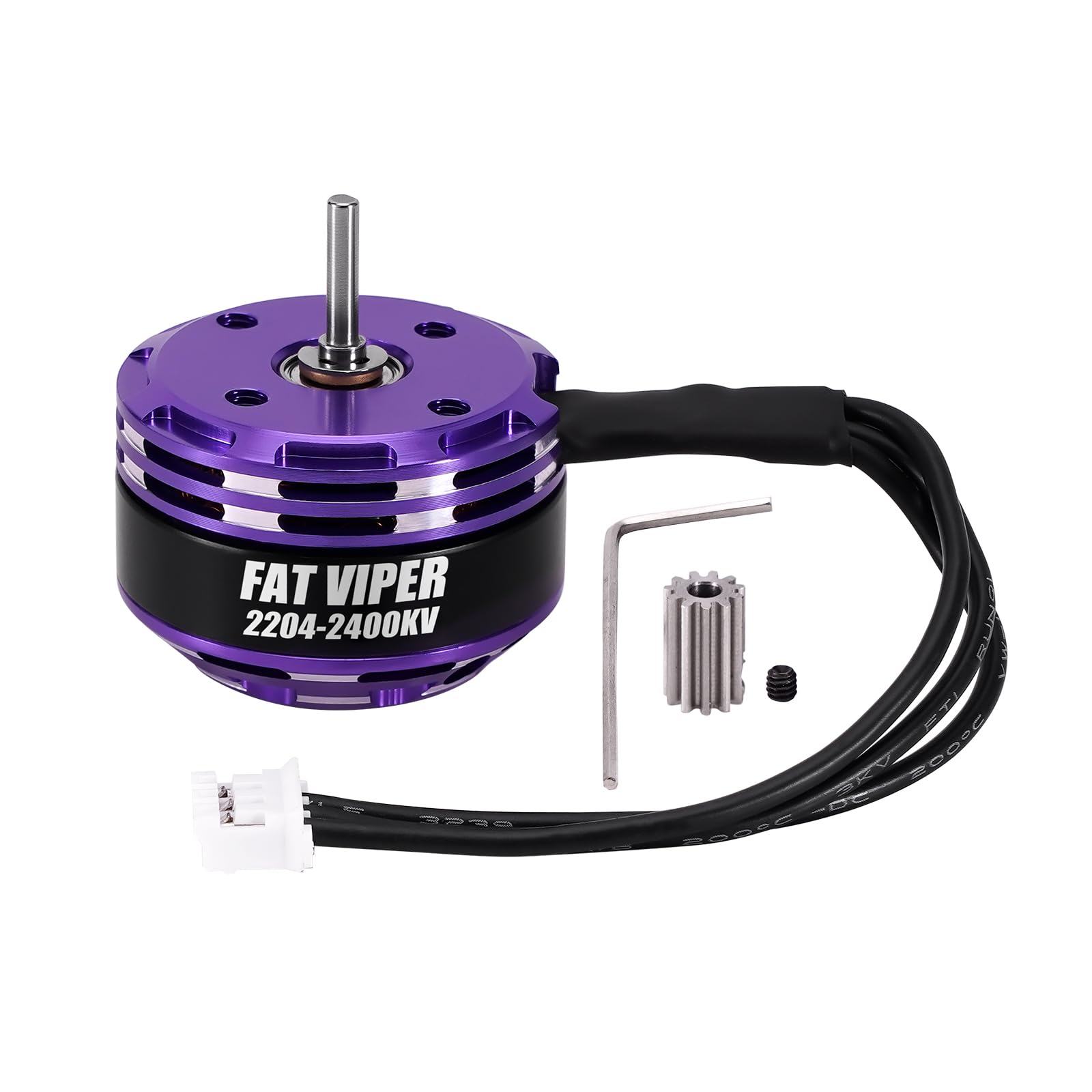

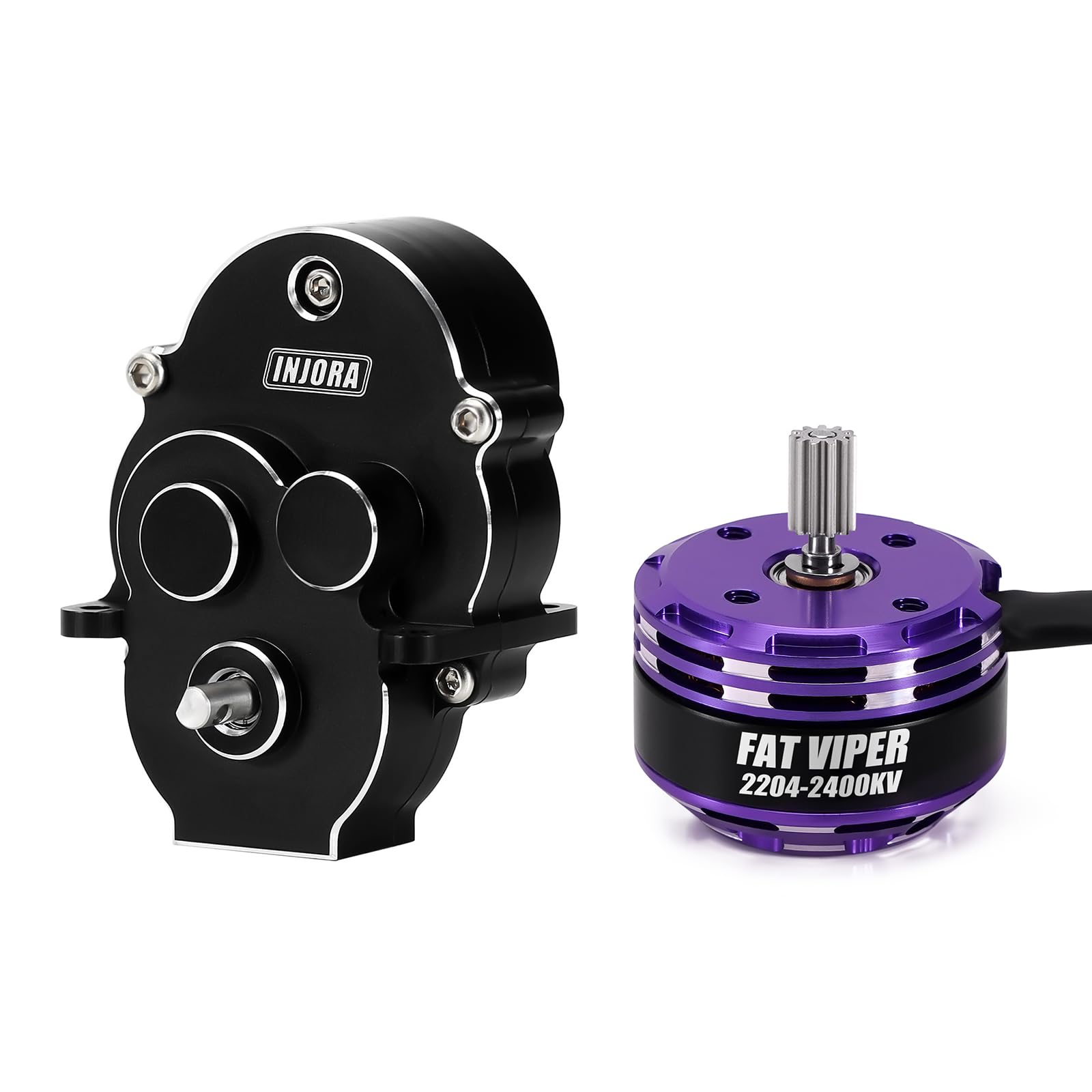

Package List:
1 * Fat Viper 2204 Brushless Motor
1 * Motor Pinion 10T
1 * 370 Transmission
FEATURES
- Smooth and linear at low speeds, powerful and aggressive at high speeds.
- Runs more quietly than brushed systems, producing virtually no noise.
- 2204 Fat Viper Outrunner Motor will give your car a better driving performance.
- 3S batteries are highly recommended for high torque.
- Note: Compatible with INJORA 370 transmission. Not compatible with stock transmission! Compatible with INJORA MBL32 brushless ESC. Not compatible with stock ESC!
