HANLIAN Single Hole Bathroom Pull Out Faucet with Rotating Spout, One Handle

HANLIAN's sink faucet bathroom 1 hole with pull-out spray has a 360 rotating design that extends the cleaning range and increases the convenience of washing up. The square appearance is simple and generous, which makes your bathroom look more noble.

Practical gravity ball pull-out design

Easily switch between 3 spray modes

Solid and durable material

Specifications:

-Hot and cold controller: Yes

-Fitting type: Adapted to 3/8" water supply connection

-Valve Type: Ceramic disc cartridge

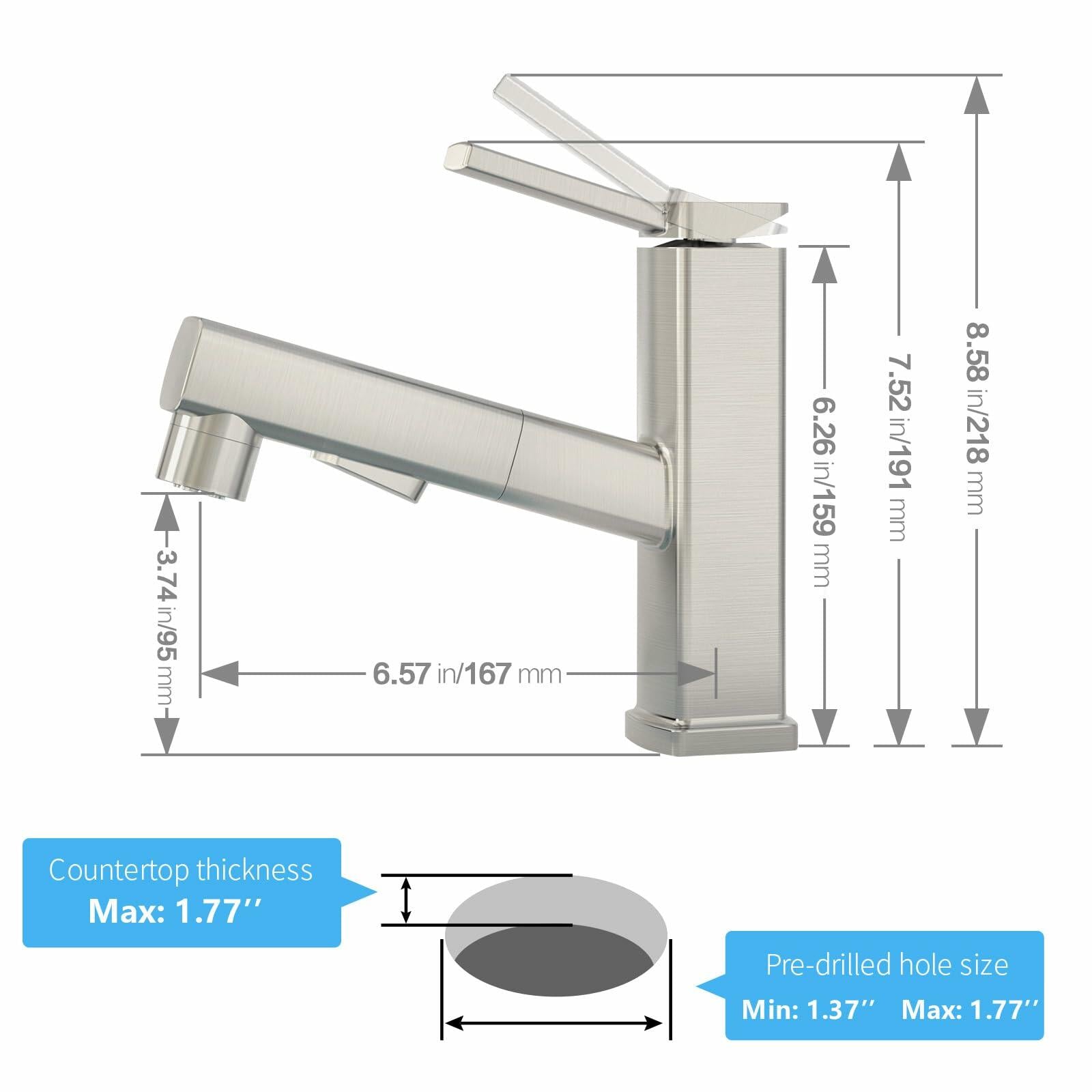

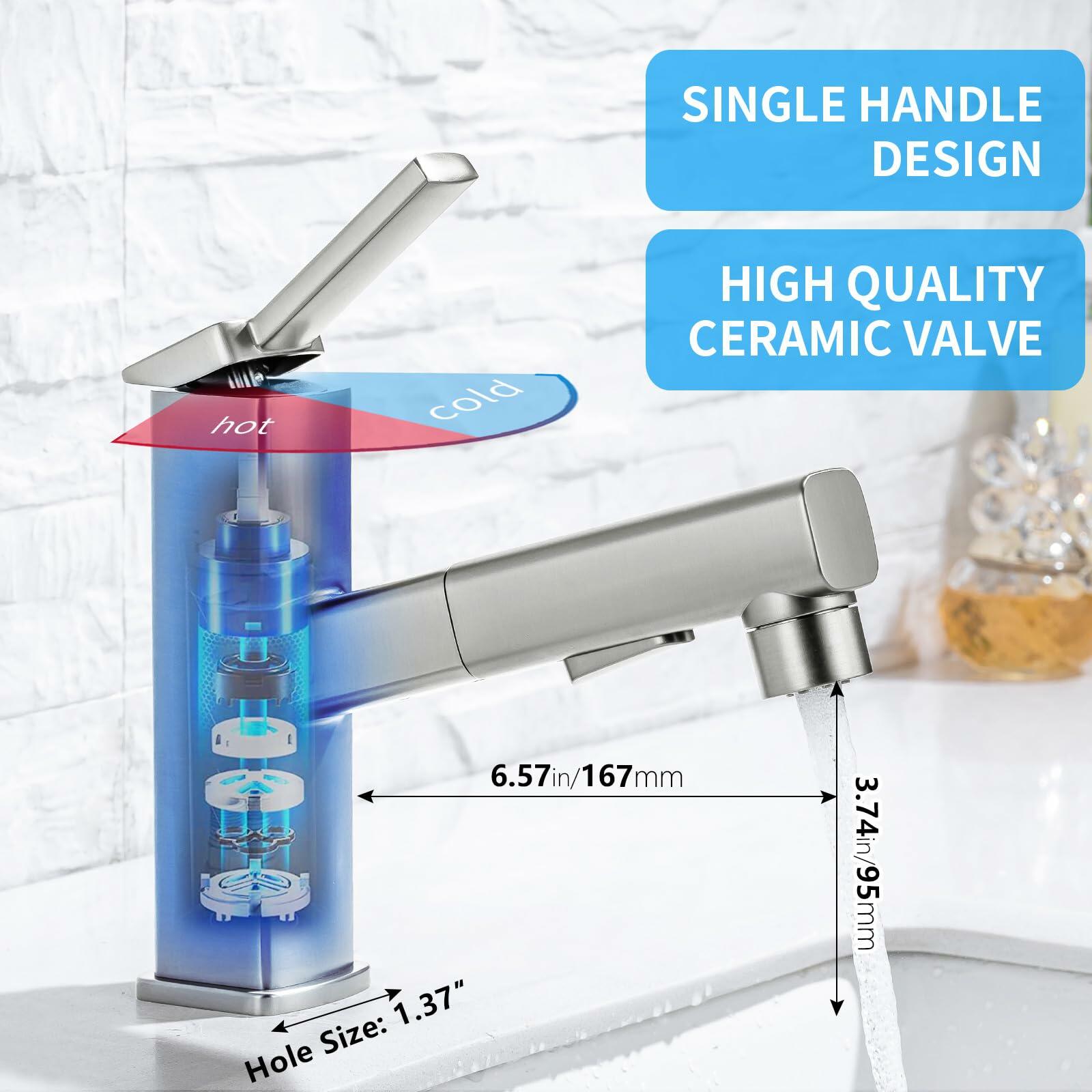

-Spout Reach: 6.57"/167mm

-Spout Height: 3.74"/95mm

-Total length of pull-out hose: 59.06''/1500mm

-Pull Out Hose Reach up to (with sprayer): 20.47''/520mm

-Pull Out Hose Reach up to (without sprayer): 16.14''/410mm

Installation Dimension:

Compatible with 1-Hole installation.

Mounting hole size: 1.37-1.77

Max counter top thickness: 1.77

Package Include:

-1 * One Handle Bathroom Faucet

-1 * Gravity Ball

-2 * Water Line Hose, 3/8"(Hot & Cold)

-1 * Mounting Accessories

NOTICE: Pop up drain and cover plate are not included.

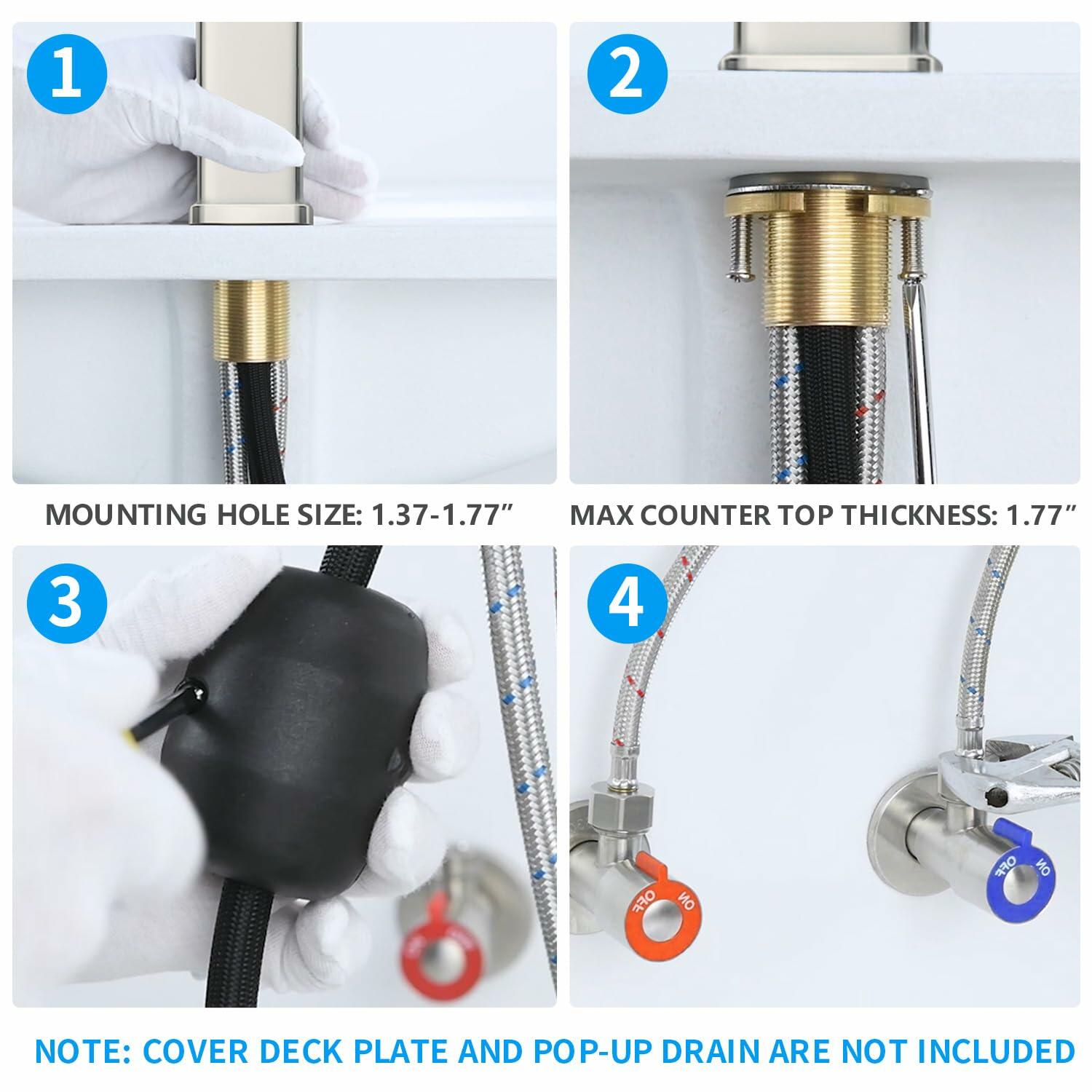

INSTALLATION STEPS

1. Remove the nut and washer from the bottom of the faucet.

2. Insert the bottom of the faucet into the mounting hole of the countertop.

3. Connect draw hose, lock the nut.

4. Attach the gravity ball to the upper side of the bottom of the pull tube connected to spray head.

5.Connect the cold and hot water inlet pipe joint to the angle valve to complete the installation.

FEATURES

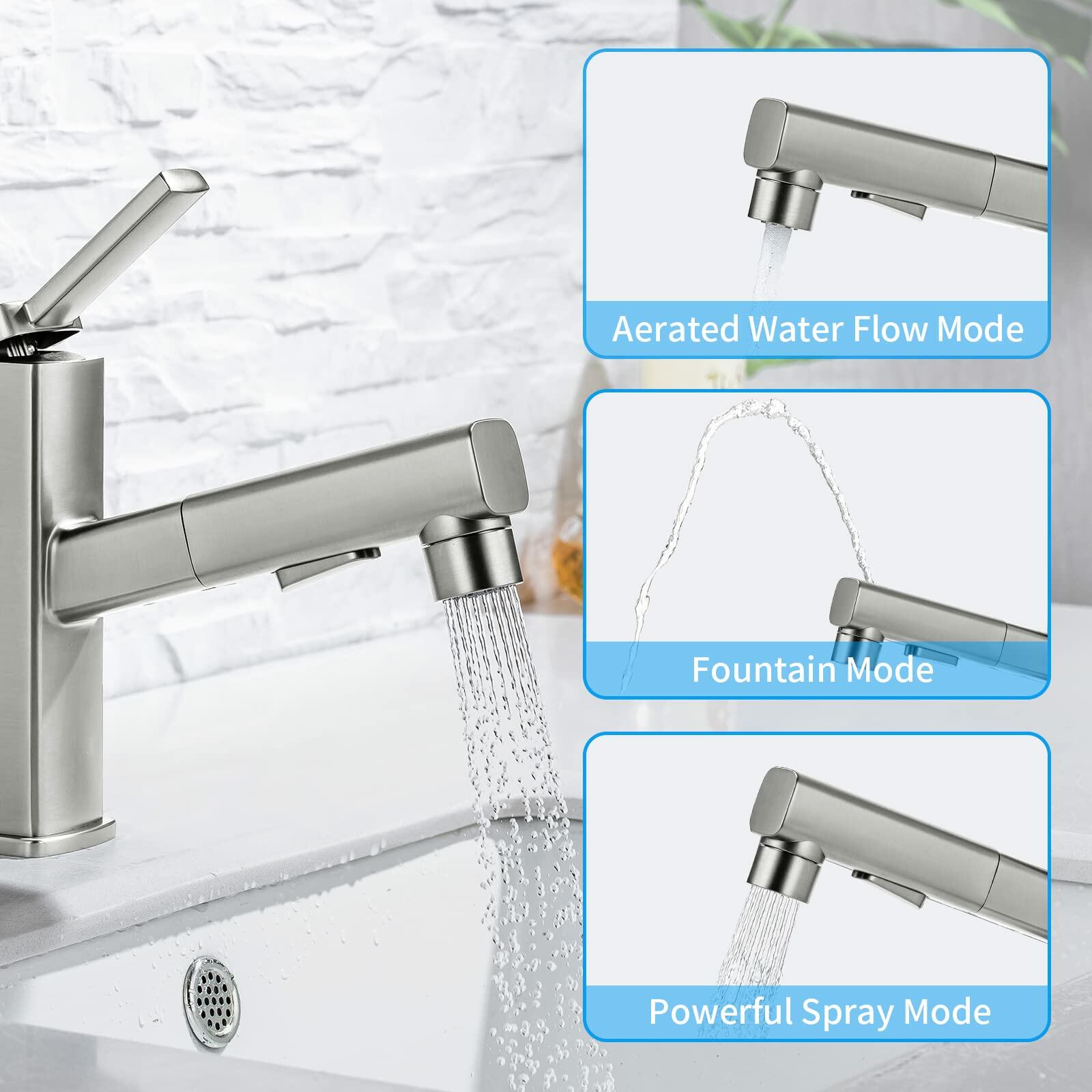

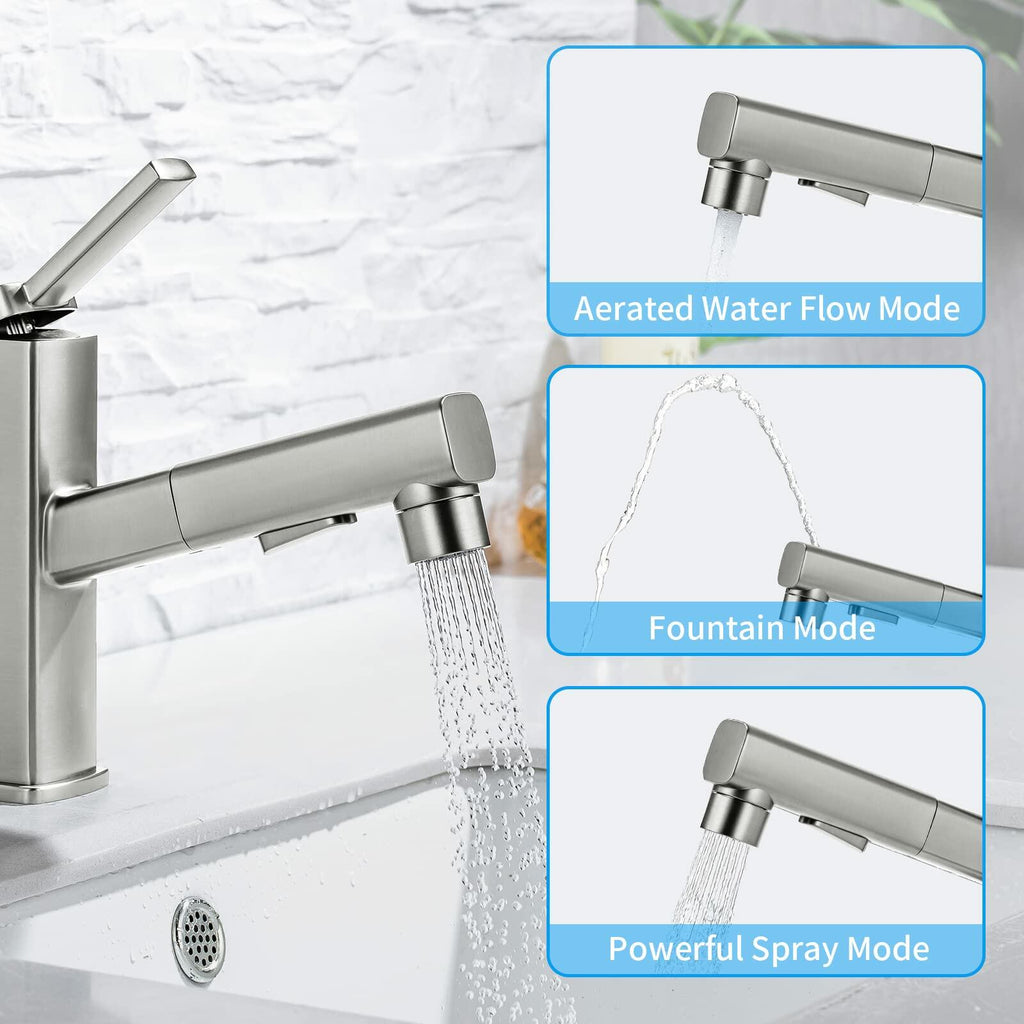

• ❤【THREE MODE SPRAY SETTING】: The innovative fountain mode of the single handle bathroom faucet realizes automatic mouthwashing and facewashing, freeing your hands with ease. The splash-free powerful spray mode makes daily rinsing easier and quickly rinses the perimeter of the sink. The gentle aerated water flow mode comes with a massage effect, allowing you to enjoy the comfort of washing.

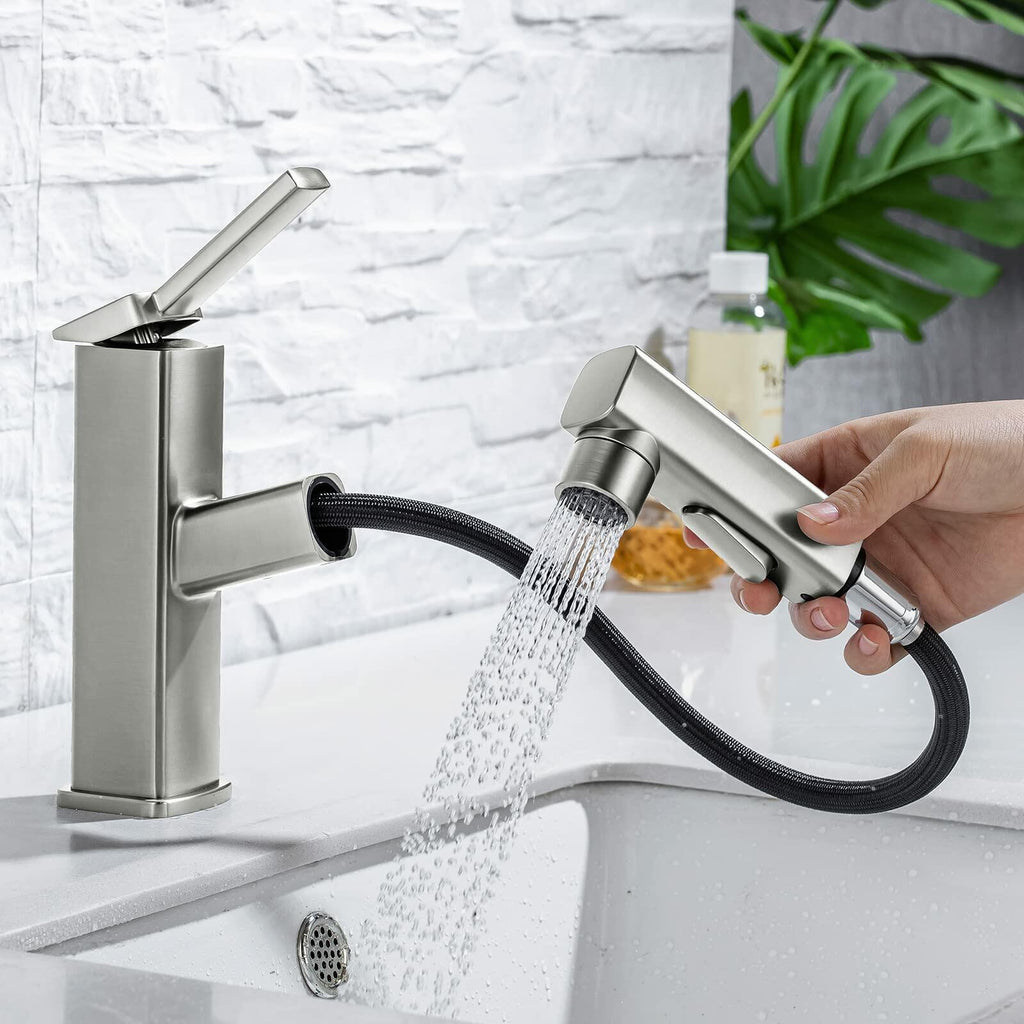

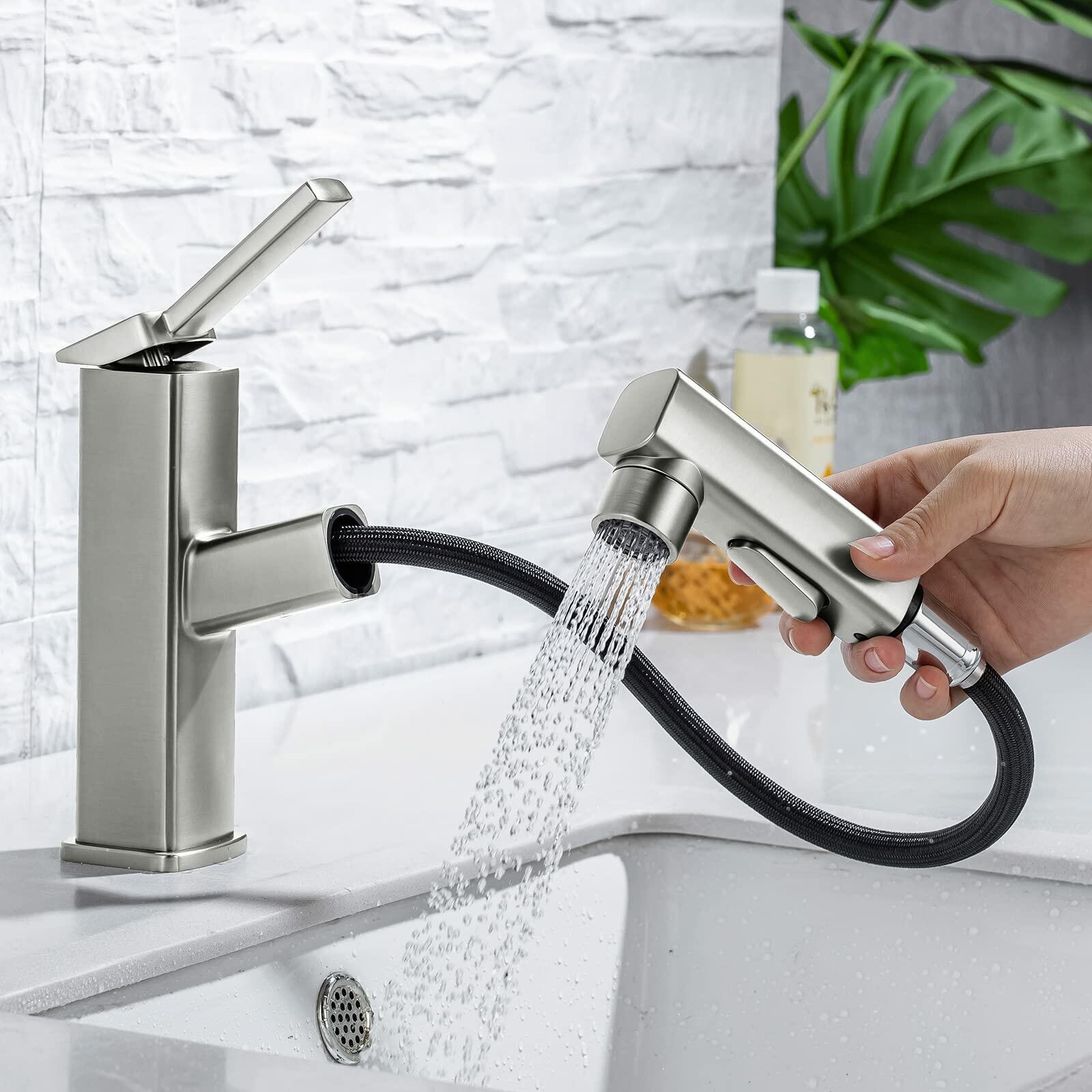

• ❤【360°ROTATING PULL OUT SPRAYER】: The pull-out hose of bathroom faucets for sink 1 hole is polyester braided up to 26.6 inches long. The range of use can be extended beyond the sink without restriction for greater flexibility and convenience. The unique design of 360-degree rotation is very suitable for various scenarios: washing hair in a basin, filling water in a bucket, bathing pets, etc. The flexible pull-out bathroom faucet also makes it easy to clean all parts of the sink.
• ❤【SINGLE HANDLE DESIGN】: The single handle of one hole bathroom faucet can easily achieve dual control of hot and cold, and adjust the water temperature at will. In addition, it is also convenient to adjust the water flow, the soft water does not splash, and it can save water. Built-in ceramic spool with high sealing performance resists extreme temperatures and reduces leakage.

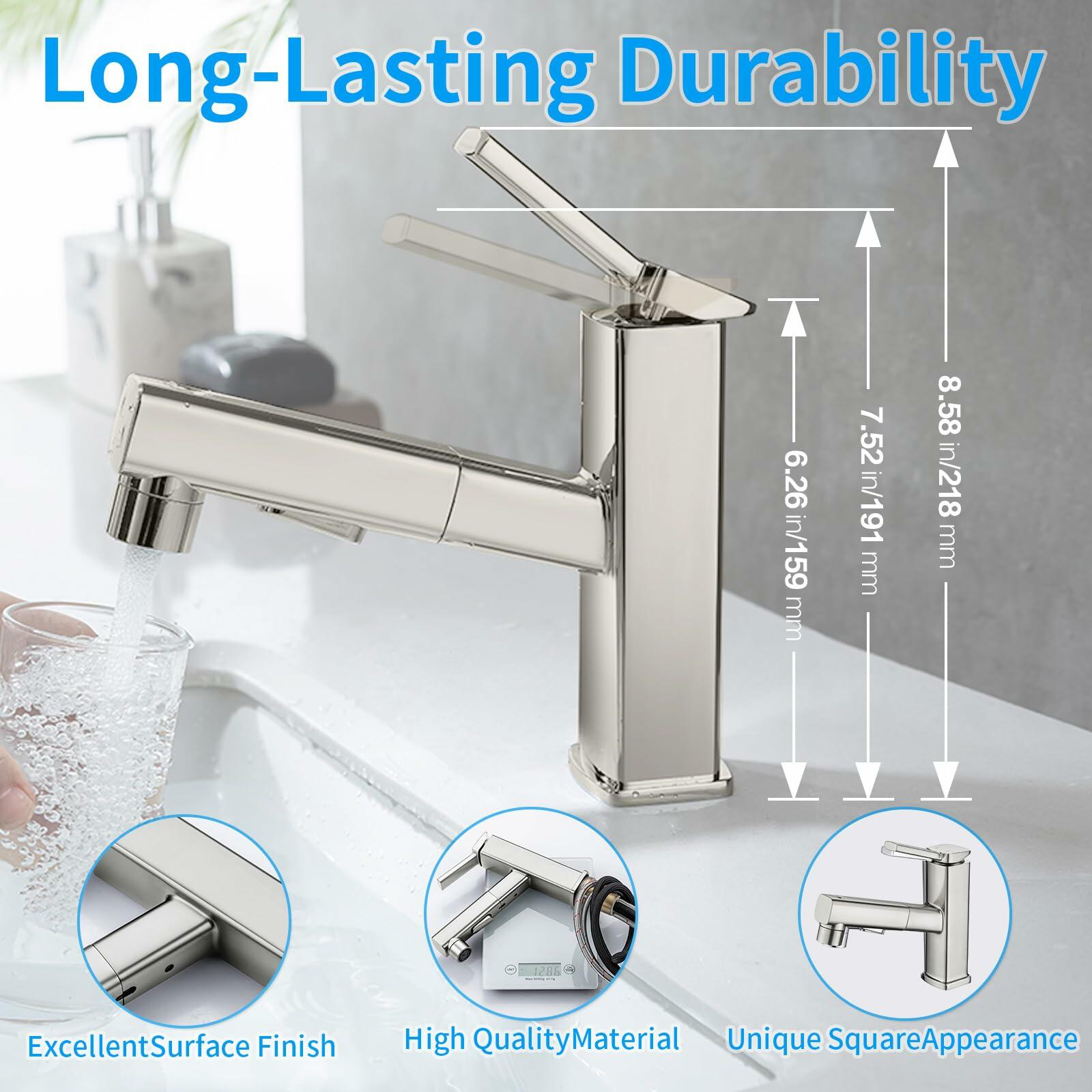

• ❤【PREMIUM QUALITY TAP】: This bathroom sink faucet with sprayer is made of high quality metal for sturdiness and durability. The distinctive square design is eye-catching, together with the ergonomic single handle design. The sophisticated finish prevents scratches or fingerprints, makes it easy to clean and maintains a long-lasting shine. Well-made and with excellent corrosion resistance, it ensures continued stability.
• ❤【EASY INSTALLATION】: With a standard universal port, compatible with single hole installations, the whole installation process is easy and quick. Fitting type: adapted to 3/8" water supply connection. Pre-assembled hot and cold water supply pipes with a length of 23.62 inches(60cm). Note: pop-up drain and cover plate are not included. Mounting hole size: 1.37-1.77’’, Max countertop thickness: 1.77’’. Before installation, please check that the pre-installed water inlet hose on the faucet is securely tightened!
