DSD TECH SH-G01L USB Isolator Supports USB 2.0 480Mbps High Speed Isolation

The SH-G01L USB Isolator is built with ADI's ADUM3165 chip. It supports USB 2.0 high speed mode with maximum transfer speed up to 480Mbps. It protects USB ports from surges and voltage spikes, eliminates noise introduced by ground loops.

Specification:
Model: SH-G01L
Main chip: ADI ADUM3165
Interface: USB 2.0
Power input: 5V
Supports Low (1.5Mbps), Full (12Mbps),High-Speed(480Mbps)
Voltage isolation: 1500V
Audio Compatibility: PCM 32bit/768kHzDSD512 Native and more
Output current (max)400mA
Output power2W

Packing list:
1SH-G01L USB Isolator
1User manual

WARRANTY:
DSD TECH offers a 1-year warranty and lifetime technical support for this high speed usb isolation.If you meet any questions, Please contact us, We will fix your issue within 24 hours.

FEATURES

• DSD TECH: DSD TECH focuses on the development of communication connection devices such as USB/Serial/Wireless. We have served more than 100,000 customers in Europe, North America and Japan.

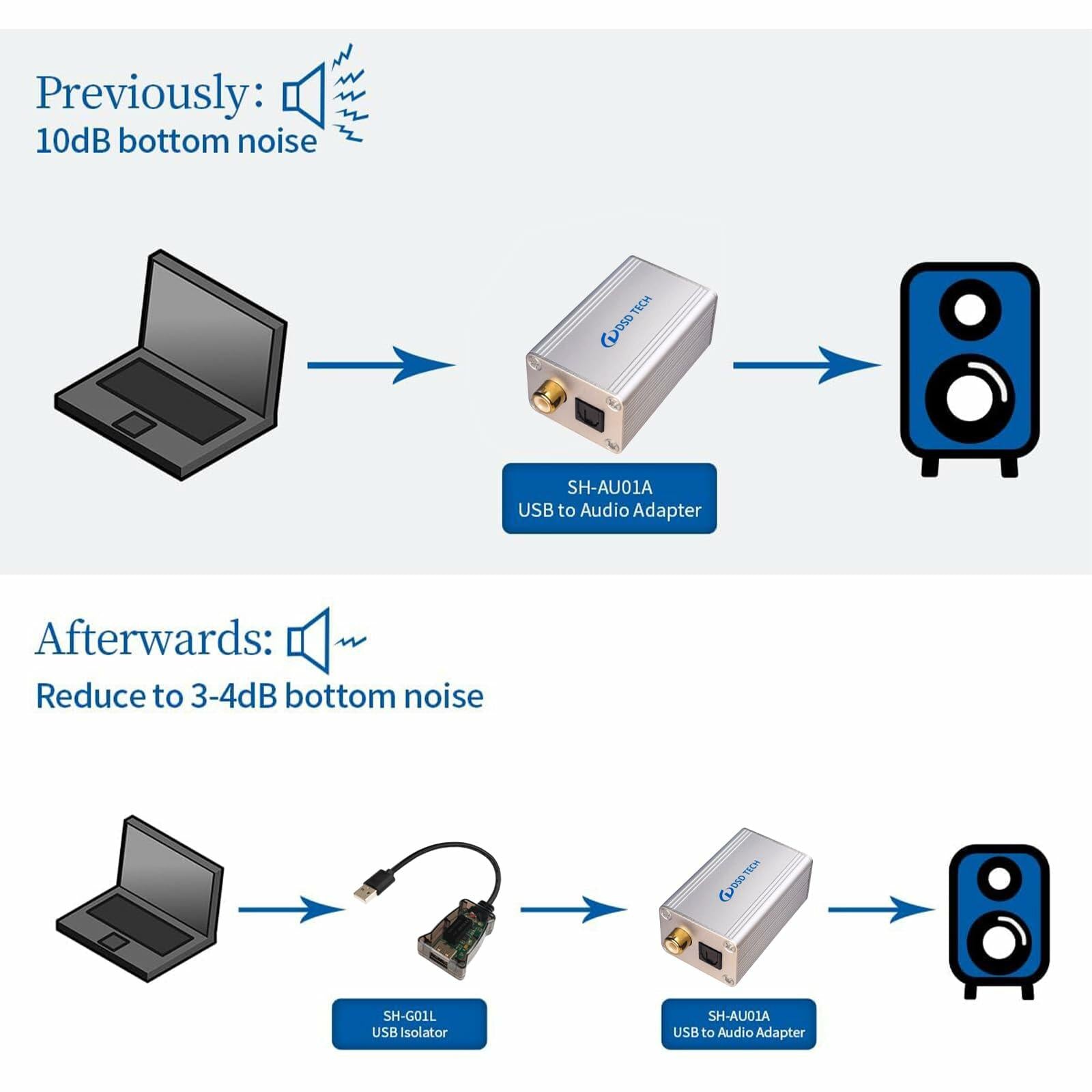

• 480M High Speed Isolator: Realizes passive isolation of high-speed 480M, full-speed 12M and low-speed 1.5M, effectively prevents ground noise, electrical interference, electrostatic breakdown and signal fluctuation. Suitable for USB isolated communication in strong electric power, strong interference working environment or noise-sensitive areas.

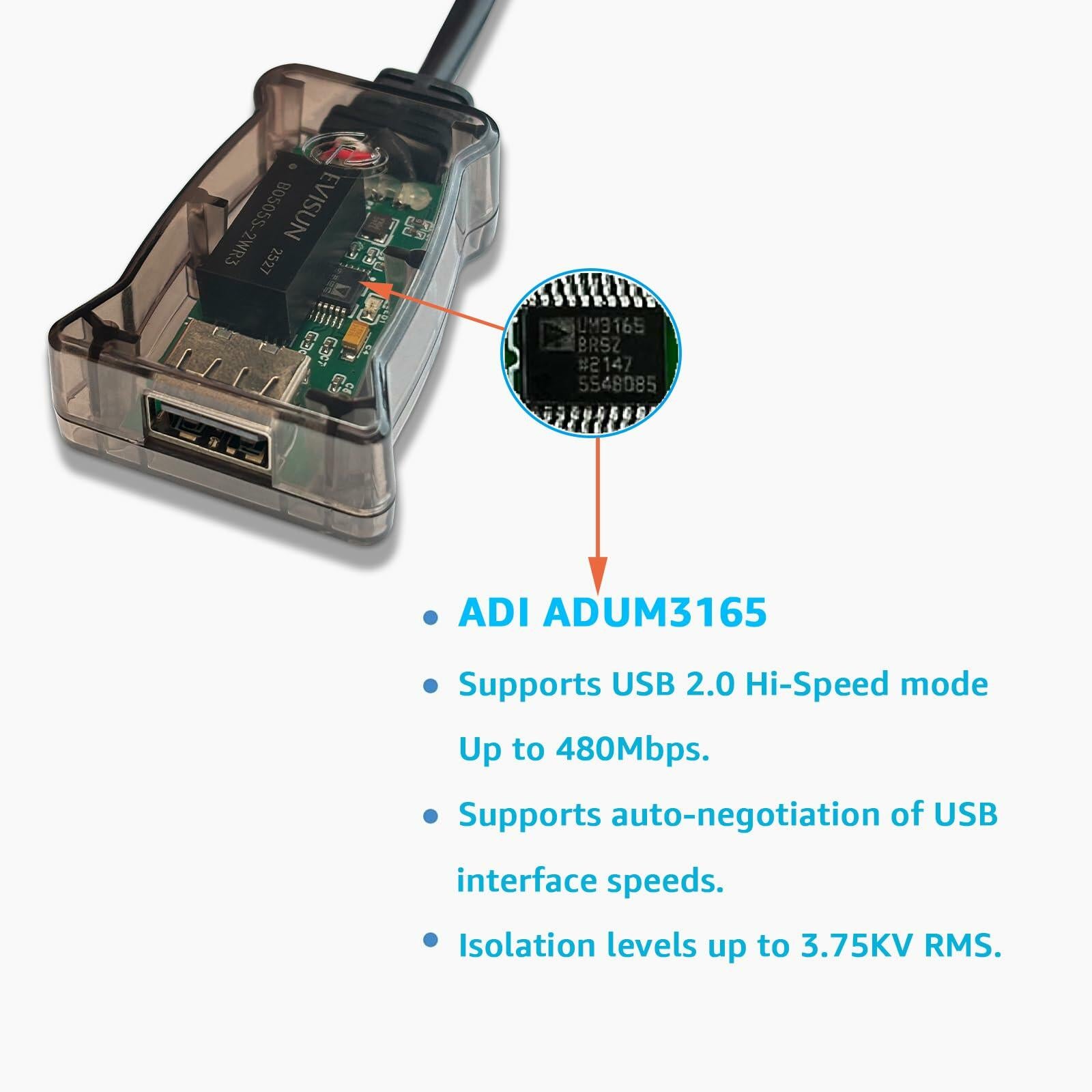

• ADUM3165 Chip：Supports Auto-negotiates USB interface speed, adapting and switching according to the speed provided by the host computer. Isolation levels up to 3.75kV RMS. Redriving and high speed data retiming for input jitter removal and an open eye.
• Compatibility: Plug and play, no driver required. Isolators can run on any operating system, including Windows, Linux, and MacOS, improving data security and ensuring the electromagnetic compatibility of USB devices.
