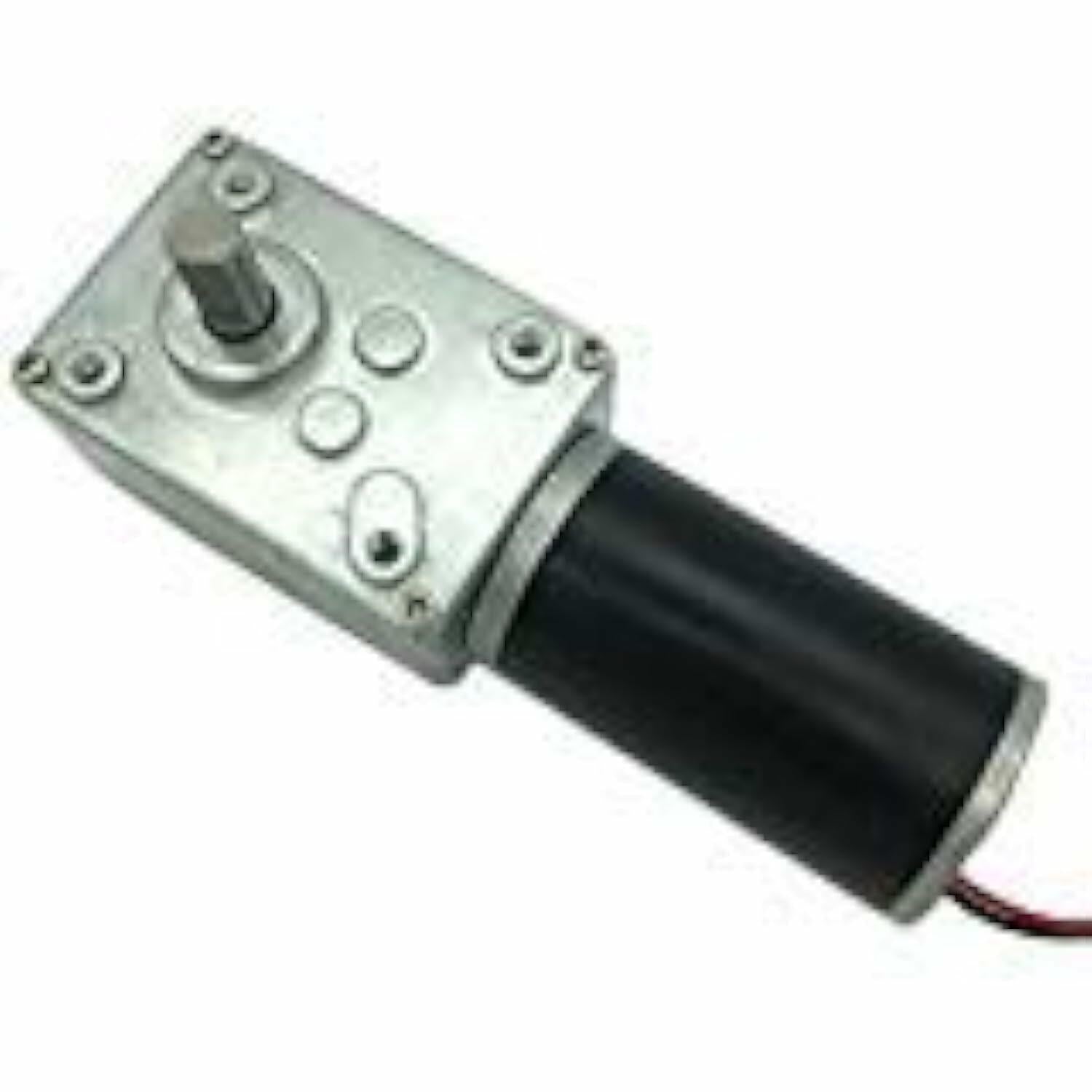

BRINGSMART 12V 16rpm DC Worm Gear Motor 70kg.cm High Torque Turbine Electric
$27.95
Skip to product information
BRINGSMART 12V 16rpm DC Worm Gear Motor 70kg.cm High Torque Turbine Electric
$27.95
Shipping calculated at checkout.
Item Number:
S44041603
Condition:
New: Open box
Product is new, box or packaging may have been opened or damaged
Low Stock — Only 1 Left
Description

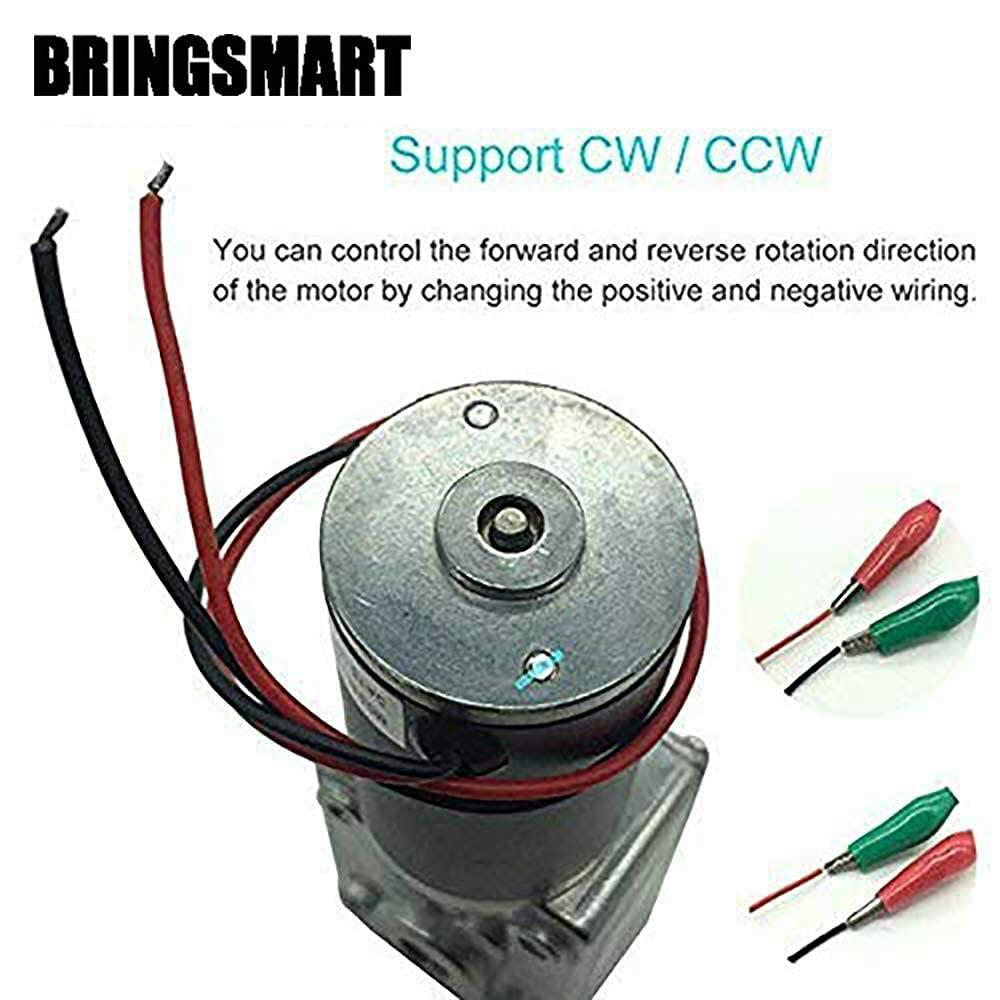

This type is miniature Worm Gear DC Motor, which can change shaft rotation direction while the wiring positive andnegative be changed . It is also have addition two characteristics:

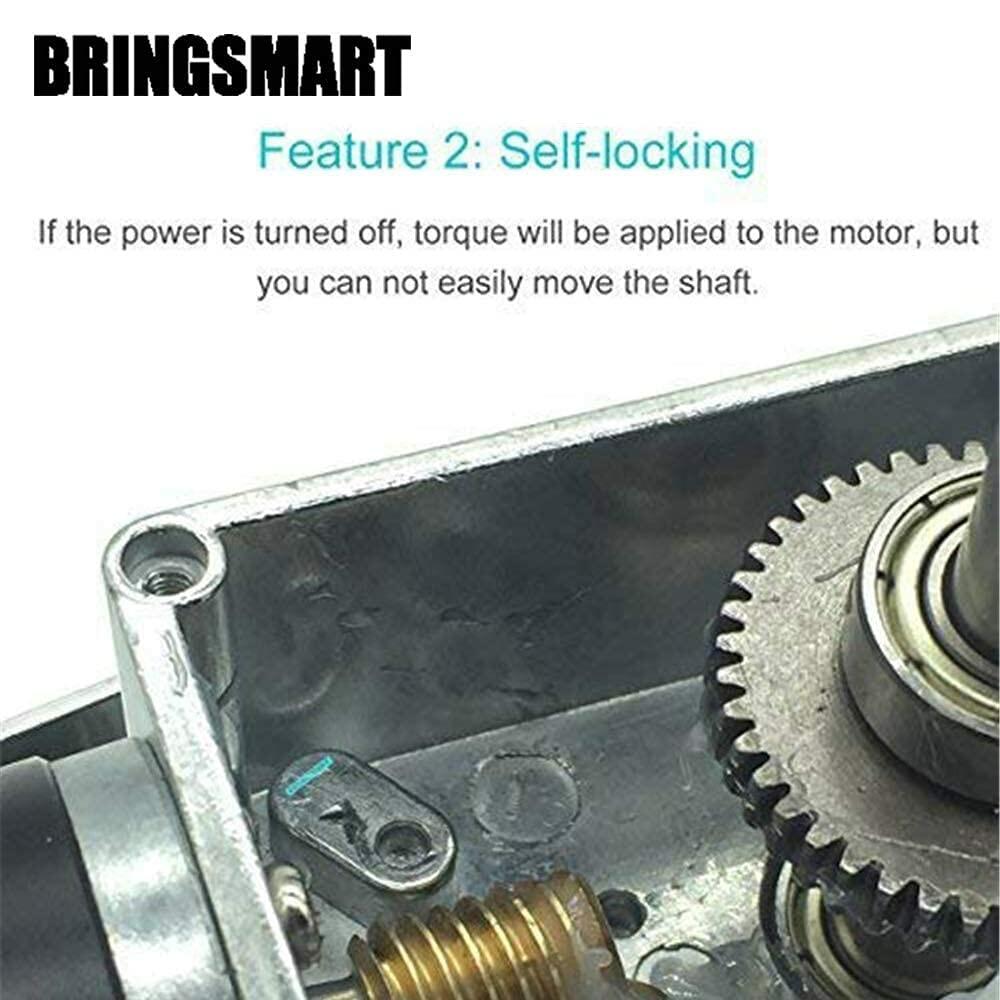

1. With self-locking, the output shaft can not rotation when switch off, that is self-locking.
2. Gearbox output shaft and motor shaft are come to be a rectangle, it is widely used in various of occasions that require special install size.
Apply to robot, display cabinets, electric door, electric curtains, electric racks, barbecue machine, barbecue pits, electric toys,hands-on DIY, etc.
And if you need other voltage and rpm, pls contact us, there are many other models of this motor in store.

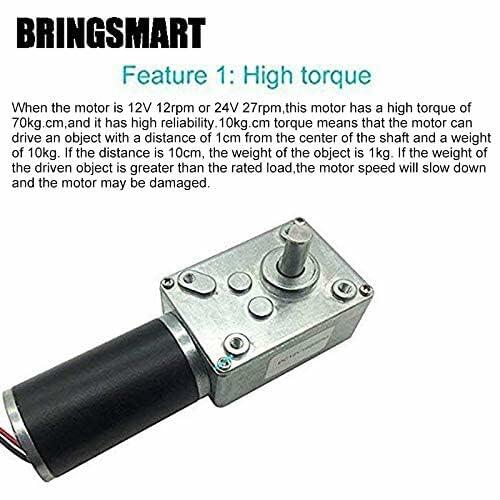

What does motor torque mean?
The standard torque of the motor is 10kg.cm. If the belt wheel is used for transmission, the belt wheel has a radius of 1cm, and the output tension of the belt is 10kg.
If the belt radius is 2cm, the output tension of the belt is 5kg, and so on.10KG.CM torque means that the motor can drive an object with a distance of 1cm from the center of the shaft and a weight of 10kg. If the distance is 10cm, the weight of the object is 1kg. If the weight of the driven object is greater than the rated load, the motor speed will slow down and the motor may be damaged.
FEATURES

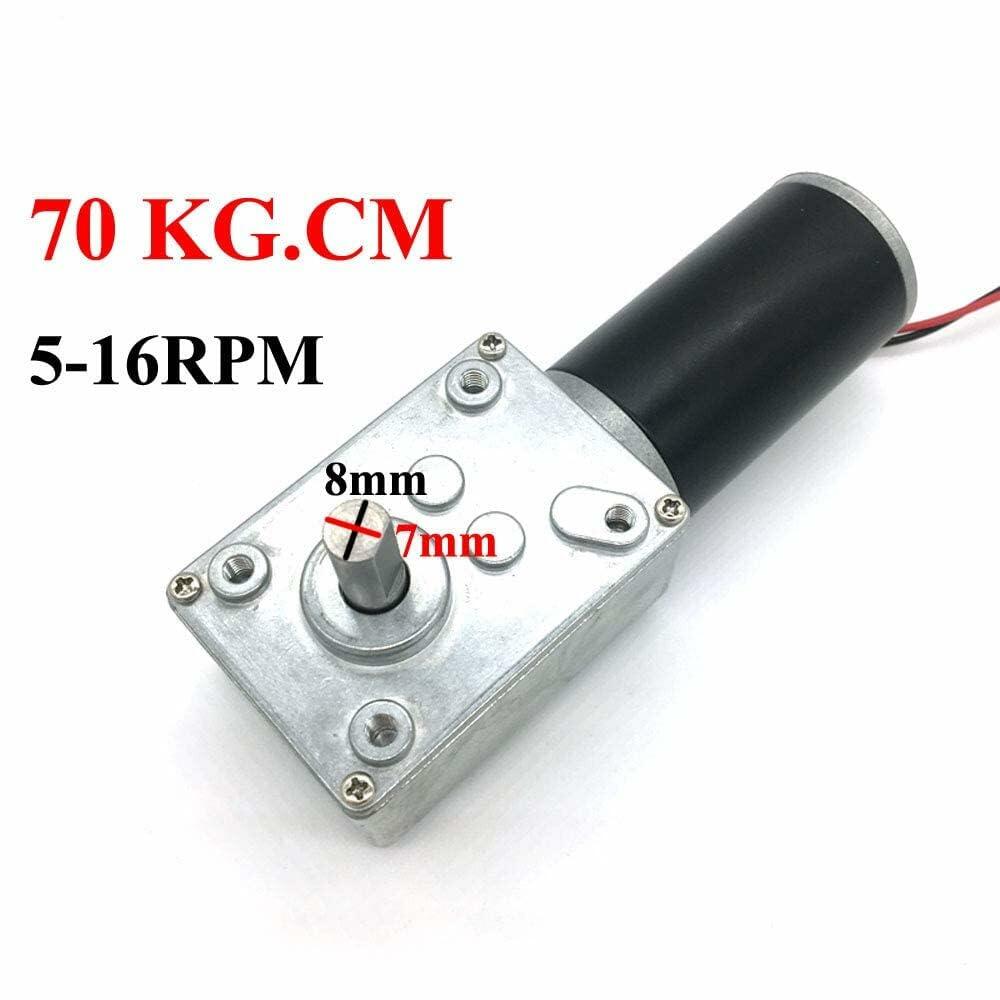

- Rated voltage-12V DC, No load speed-16rpm, no load current-350mA, Rated speed-12rpm, rated torque-70kg.cm, rated current-1.6A, Reducer ratio-1:505.10KG.CM torque means that the motor can drive an object with a distance of 1cm from the center of the shaft and a weight of 10kg. If the distance is 10cm, the weight of the object is 1kg. If the weight of the driven object is greater than the rated load, the motor speed will slow down and the motor may be damaged.

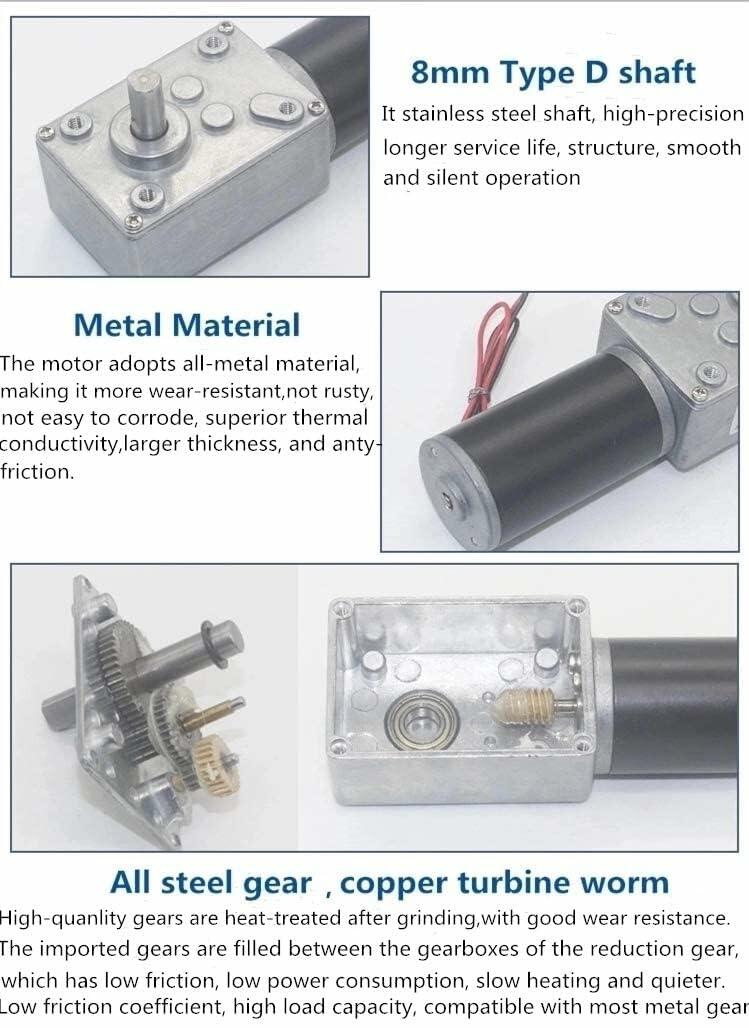

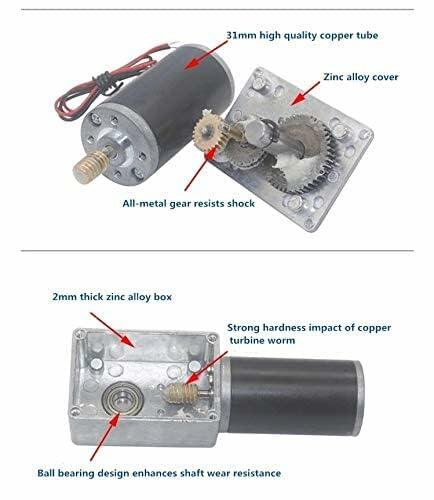

- Feature: The motor is Gear DC motor with micro-turbine worm, you can change the wiring-connection to change motor rotation. -Turbo worm geared motor with self-lock, that is, in the case of motor without electric, the output axis is fixed, self-lock. -The reducer output shaft arranged vertically with the motor shaft, whole motor output
- Application: bank equipment, safe box, paper feeder, intelligent gas meter, tissue machine, accessory of automobile, ad equipment, analysis instrument, electronic game machine,electrical appliances including remote control curtains, locks, paper shredders, copying machines, and safes Inner.
- What You Get: 1pcs x DC Geared Motor; if you need other voltage and rpm, pls contact us, there are many other models of this motor in store.
- Quality Guarantee: Any quality issues, we promise 100% unconditional return service. If you need other voltage and rpm, please feel free to contact us! If you have any question about the motor, please also contact us. We will try our best to reply you asap.
