100A Battery Isolator Switch Disconnect Power Cut Off Kill for Car-Boat RV-Truck

Features:

Widely Application:Battery disconnect switch is universal for cars, off-road vehicles, trucks, motorcycles, boats, etc.

100A Battery Switch: Size: 55mmx45mm.

Continuous rating: 100Amps 32V / DC Max.

Intermittent rating: 150Amps.

Crank rating: 500Amps 5 seconds.

Contact Resistance: 50m ohm max

Premium Material:Made of heavy-duty ABS and metal material, durable and sturdy. Just a few minutes to install and wire, easy to use. Test before shipping to ensure product perfect, stability, and durability.

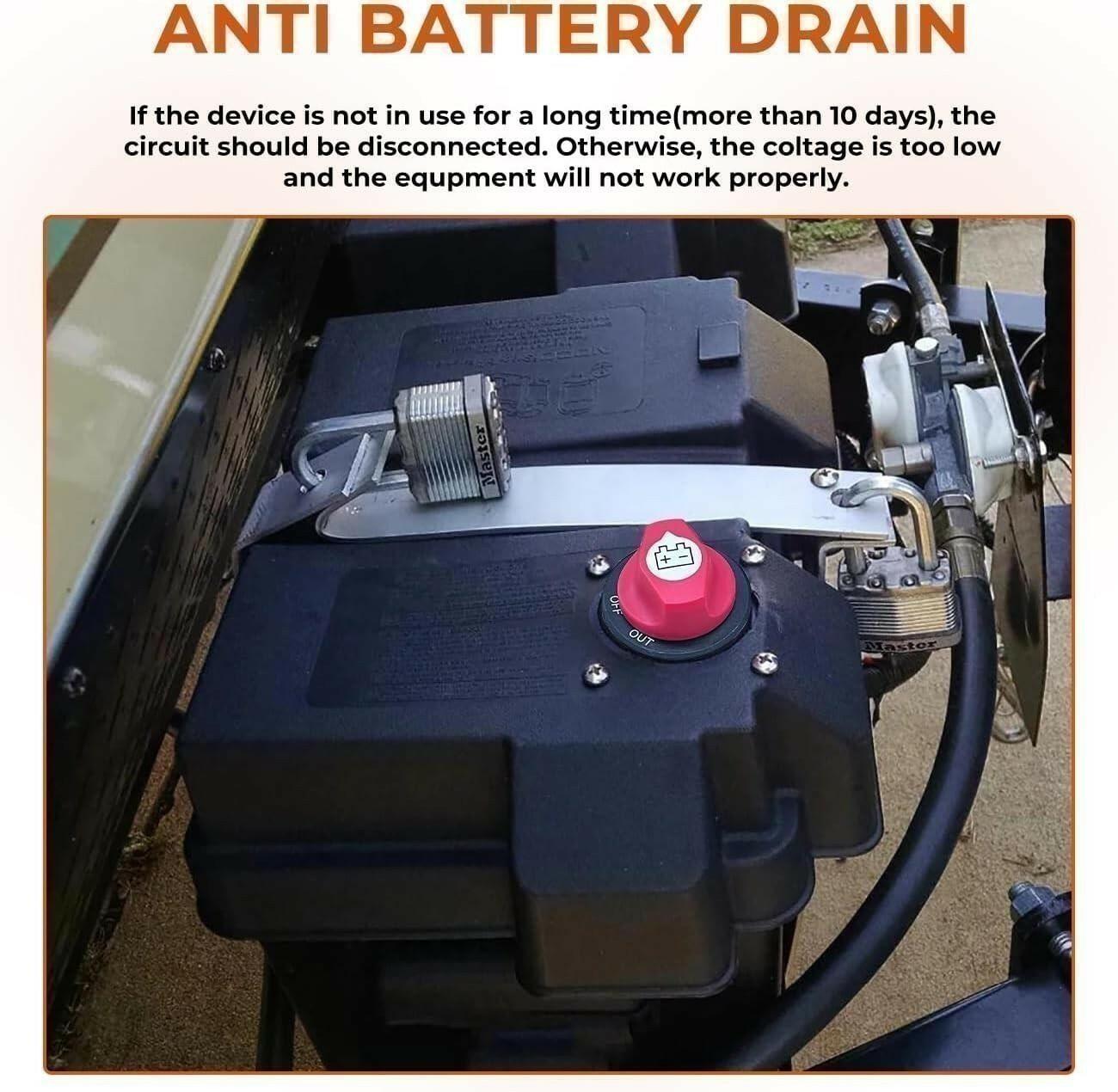

Safety Protection:The battery switch can protect the power supply and prevent leakage safely. It can eliminate any power draw from the battery when the vehicle or boat is not in use. 2-Position: ON/OFF.

OUT Mode:Switch to OUT, can remove the red cover which is equivalent to a key. Effectively prevent others from accidentally changing the connection, perfectly insulates the rear terminals against any short circuits.

Specification:

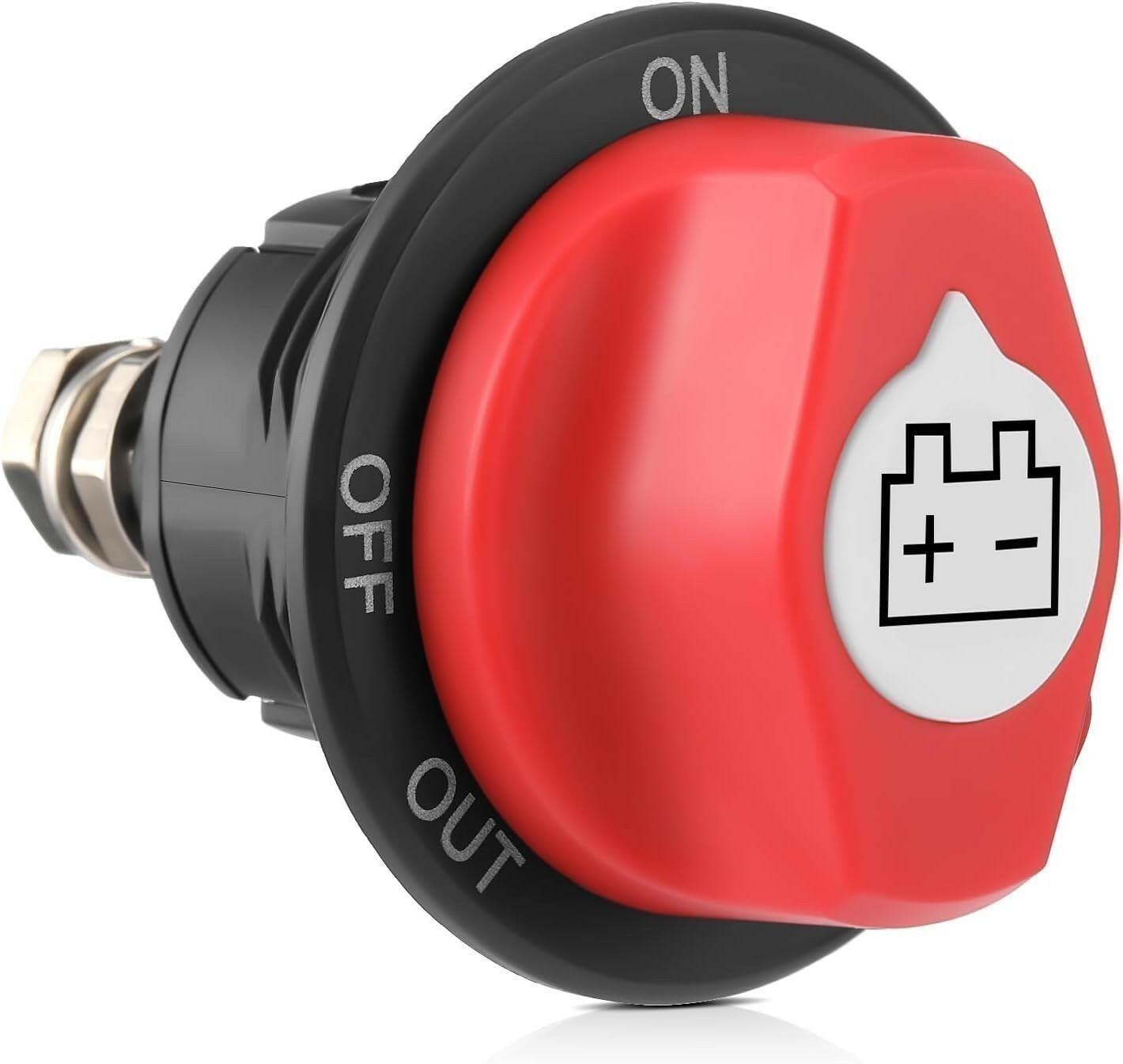

Type: Battery Switch

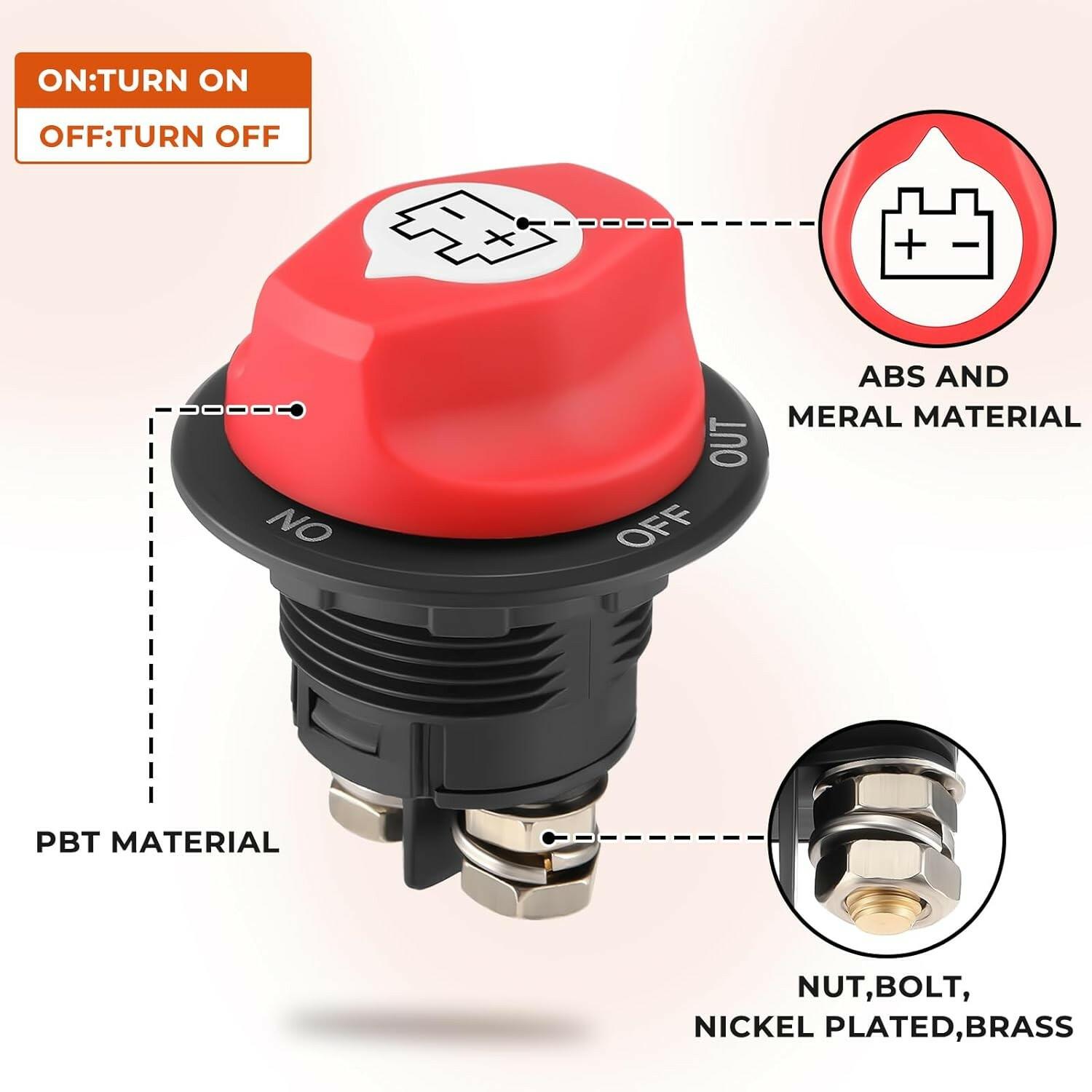

Material: ABS + metal

Color: Red and black

Size: 55mmx45mm

Rated Current:100A

Continuous Rating: 100A 32V DC Max.

Intermittent Rating:150 amps

Crank Rating: 500Amps 5 seconds

Contact Resistance: 50m ohm max

Insulation Resistance: DC 500V 100M ohm Min

Dielectric Strength: AC 1000V 1 Minute, DC 2000V 1 minute

Operation Temperature: -30~+60

Location Features: On/Off

OUT: (can remove the red cover on the switch, equivalent to the key)

Mounting Hole: 29mm

Binding Post: 6mm

Package Included:

1x 100A Battery Switch
